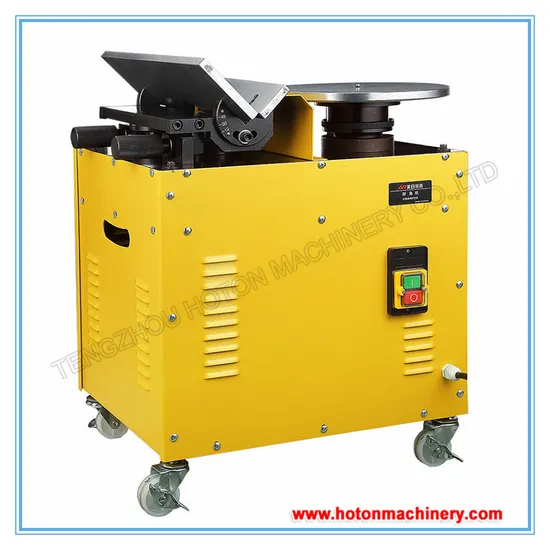

MR-R800B High Speed Complex Chamfer Machine

Product Description

Production Description
It is easy, quick to change the cutter, no need to clamp, easy operate, perfect chamfering, easy adjust,and economic, suitable for batch parts of machanism or mould.
In-house developed straight line bevel edge function can make 15 °- 45° adjustment.
Need no attire clamping, simplicity of operation, neat bevel edge, easy adjustment greatly enhance operation efficiency. This bevel machine is suitable for batch machine parts production, mold bevel edge. Using high-speed bevel machine is the current trend of the development of mechanical industry.
The machine adopt Swedish SKF bearing and imported digital cuttings.
SPECIFICATIONS:

Model:	MR-R800B
Chamfering height	0-3mm (the max chamfer should not be bigger than 2mm everytime)
Chamfering angle	Straight line angle: 15° - 45° Curved angle: 45°
Power	750W, 380V 3/4HP
Speed	Straight line: 8500rpm Curved: 12000rpm
Dimension	53*44*60cm
Weight	70KG
Standard Equipment	Inserts*2 sets:1 set for straight,1 set for curved

Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.

---
