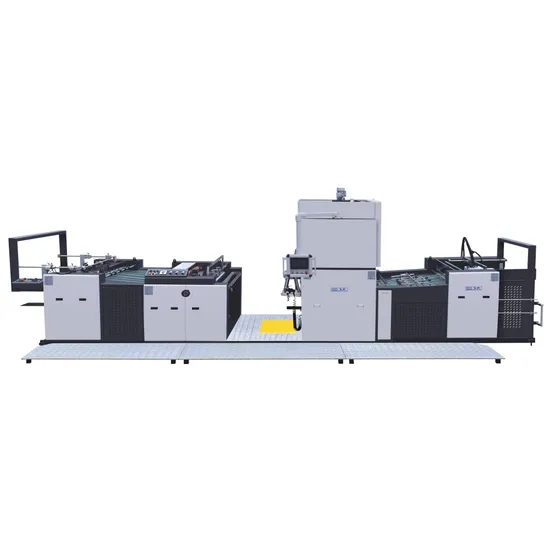

Fhs-1050 Full Automatic High Speed Vertical Window Dual-Film Laminator Machine

Product Description

FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine Product Description YFMD series Automatic high speed laminating machine as a professional equipment used for plastic film laminating on the surface of paper printed matter. Improving the printing matter grades, and achieve the purpose of dust-proof, waterproof, oil proof. Automatic Thermal Laminating Machines are an essential tool for any business or organization looking to increase their document protection and overall efficiency. With an automatic thermal laminating machine, you can laminate documents quickly and easily with minimal effort and no mess. These machines can save time and money by eliminating the need to manually laminate documents. Additionally, they provide superior protection against fading, water damage, smudging, dirt, dust, and other damaging elements. As a result, your documents will look professional and last longer than ever before.
Key Features 1: Pre-stacker mechanism to realize non-stop paper feeding and receiving.
2:Adopt high-speed offset feeder (12000 sheets/hour) to ensure fast and stable operation
3:High degree of intelligence, the whole machine is controlled by PLC and man-machine, and each part is frequency-converted and servo-linked to ensure speed synchronization and easy for one person to operate.
4: High speed, high efficiency and simple operation
5:The main transmission of the whole machine adopts synchronous belt transmission, which makes the transmission stable and accurate, while ensuring the accuracy, greatly improving the stability and service life of the machine.
6:UV curing: Enhance the fastness of the film, especially to solve the problem of the film not sticking to the subsequent creasing and embossing!
7: Any combination of powerful multi-functional configuration can solve various problems of laminating process!
Powder removal: Remove surface dust and impurities to make the surface more beautiful and compacted! Double-sided: The upper and lower sides are laminated at the same time, with high efficiency and no waste! Double press: Good surface compaction, no whitening, stronger fit, double surface compaction and fastness enhancement effect! Embossing: Various embossing embodies the aesthetics of surface decoration! Chain knife: Slitting of tailless film and high toughness film such as PET and aluminum foil film! Hot knife: High-speed, tailless, for PET, aluminum foil film and other high-toughness film slitting! Corona: Solve the post-processing problems such as low corona value, screen printing, box pasting, stamping, etc. Injekt coding: Online Coding. Applications The FH series is a high-speed hot and cold laminating model launched by our company, which is suitable for posters, books, information albums, posters, color boxes, color box packaging, handbags, etc.
Product Parameters

Model	Unit	FH-1050
Max paper size	mm	1050*1050mm
Min paper size	mm	300*300mm
Paper weight	g/m2	80-500g/m2
Laminating speed	m/min	Standard: 0-110m/min Chain knife: 0-60m/min
Feeder Height	mm	1040mm
Receiver Height	mm	1040mm
Electricity	KW/H	25kw/hour
Power	kw	65kw
Total weight	kg	8000kg
Overall dimension	mm	9600*1800*2000mm

Configurations 1. Automatic paper feeding system.The paper feeder is an important part of the laminating machine. The function of the paper feeder is to separate the paper one by one automatically, accurately, steadily and periodically, and continuously send it to the regular positioning position.
The paper feeding method of this machine is continuous paper feeding, which has the advantages of high degree of automation, compact structure, good performance, convenient operation, accurate paper feeding and high precision. The main components of the paper feeder include the paper feeding bridge, the paper feeding head, the stacking table, the lifting system and the transmission system.
Adopt oil-free vacuum pump air suction system; Adopt high-speed offset feeder (12000 sheets/hour) to ensure fast and stable operation; Stepless frequency conversion speed regulation paper feeding; The paper conveying table of the production line is positioned and conveyed by vacuum suction to ensure smooth, neat and stable conveying; The paper feeding table is equipped with upper and lower limit protection devices; manual rapid lifting; The paper feeding table has an automatic replenishment paper feeding system; With double-sheet controller, double-sheet or multi-sheet feeding detection stop system, using the sensor of safety voltage detector; Servo technology, PLC control and human-computer interaction system centralized control. Paper stacking error ± 2mm; Front gauge and side lay positioning system. Anti-debris magnet safety device, protect the iron roller. High table feeding. 2. Main host The whole machine adopts high-precision synchronous belt and some imported chain transmission; 380mm composite heating roller, matched with electromagnetic variable power heating system; 320mm imported silicone pressure roller, which has good temperature and pressure resistance and non-stick performance; 800mm large drying hot roller, coated with industrial non-stick material Tef-lon; The drying system adopts a hot air circulation energy-saving system, combined with an active follow-up drying and heating device; Computer monitoring system, safe and easy to operate!
3.Separation system Back perforating system High speed rotation knife Anti-curve system Pneumaticperforating cutting system Slot for the separating roller Adopt the centralized control system of the whole machine to realize precise pneumatic breaking
4.Automatic paper stacker Paper collection with low noise by belt; Thin paper corrugated paper delivery system, vacuum suction paper stabilizer device to keep the paper stable; Manual fast lifting of the receiving table The upper and lower limit protection devices of the receiving table; The automatic lowering device of the delivery table, and the paper stop and alarm system at the limit of the delivery; Automatic paper cumulative counting; Match paper jam detection system to realize intelligent deceleration. Paper jam stop system. The high-speed pneumatic photoelectric paper-taking system is adopted, and the paper is taken accurately and neatly; Servo intelligent board replacement, no need for manual care (optional) 5. Eectric heating powder removal device (optional) Preheat and compact the ink on the surface, which is helpful for lamination effect and speed Remove surface dust
6.Chain knife (optional)
Main components

Series	Configuration	Brand	Origin
1	lnverter	Inovance	Shenzhen
2	PLC	Delta	Zhejiang
3	Servo driver	Delta	Zhejiang
4	Servo Motor	Delta	Zhejiang
5	Touch Screen	FLEXEM	Shanghai
6	Switch power	Meanwell	Guangzhou
7	Encoder	OMRON	Japan
8	Sensor	OMRON	Japan
9	Contactor/relay	Schnei-der	France
10	Button, toggle	Schnei-der	France
11	Main optical fiber, optoelectronic,	OMRON	Japan
12	Travel/limit switch	Schnei-der	France
13	Magnrtic valve	Airtac	Taiwan
14	Pneumatic control parts	Airtac	Taiwan
15	Belt	XINBEX	Xiamen
16	Main Motor	cpg	Taiwan
17	Temperature module	Delta	Zhejiang
18	Vacuum pump	BEIKEFR	Jiangsu
19	Bearing	NSK/AHB	Japan
20	Head Feeder	RUN	Zhejiang

After Sales Service
Training Content
All machines have been finished all adjustment and test in NEW STAR workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment, later.
Warranty 12 months for electric parts, the service is for whole life, once you asked the spare parts, we can send immediately, customer afford the courier fee. (Since the date of purchase from delivery and on the board, within 12 months)

---
