US$0.01-0.10
|
1 Piece
(MOQ)
|
Basic Info.
Transport Package
Carton with Crate
Production Capacity
1000000 Square Metre /Year
Product Description

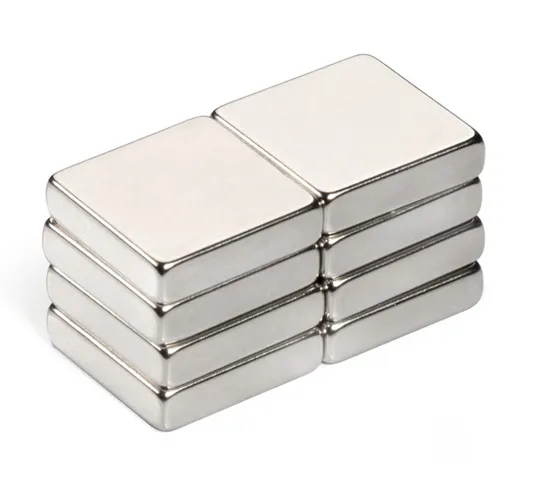

Product Description What is NdFeB Permanet Magnet?
NdFeB permanet magnet is the third generation of rare earth permanent magnet after the RECo5 magnet and RECo17 magnet, which is a tetragonal crystal system formed by neodymium, iron, and boron (Nd2Fe14B). Since the introduction of NdFeB, it has been popularized and applied worldwide due to its high quality and low cost.
NdFeB is also the strongest performance permanent magnet among contemporary magnets, its main raw materials are: rare earth metal neodymium 29%-32.5%, metal element iron 63.95-68.65%, non-metal element boron 1.1-1.2%, add dysprosium 0.6-8%, niobium 0.3-0.5%, aluminum 0.3-0.5%, copper 0.05-0.15% and other elements, and The combination of these elements and after post-processing becomes our application of permanent magnets.
Detailed Photos
Product Parameters Muding NdFeB Performance Parameters
| | GRADE | BR | HCB | HCJ | BH(MAX) | ºC |
| KGs | T | bHc | iHc | MGOe | KJ/m3 |
| Max | Min | Max | Min | KOe | KA/m | KOe | KA/m | Max | Min | Max | Min |
| N | N52 | 14.8 | 14.2 | 1.48 | 1.42 | >=10.5 | >=836 | >=11 | >=876 | 54 | 50 | 432 | 400 | <=80 |
| N50 | 14.5 | 14 | 1.45 | 1.4 | >=11.0 | >=876 | >=12 | >=955 | 52 | 48 | 416 | 384 | <=80 |
| N48 | 14.3 | 13.7 | 1.43 | 1.37 | >=11.0 | >=876 | >=12 | >=955 | 50 | 46 | 400 | 368 | <=80 |
| N45 | 13.8 | 13.2 | 1.38 | 1.32 | >=11.0 | >=876 | >=12 | >=955 | 47 | 42 | 376 | 334 | <=80 |
| N42 | 13.5 | 12.9 | 1.35 | 1.29 | >=11.0 | >=876 | >=12 | >=955 | 44 | 40 | 350 | 318 | <=80 |
| N40 | 13.2 | 12.6 | 1.32 | 1.26 | >=11.0 | >=876 | >=12 | >=955 | 42 | 38 | 334 | 302 | <=80 |
| M | 52M | 14.8 | 14.2 | 1.48 | 1.42 | >=13.3 | >=1059 | >=14 | >=1114 | 54 | 50 | 432 | 400 | <=100 |
| 50M | 14.5 | 14 | 1.45 | 1.4 | >=13.1 | >=1043 | >=14 | >=1114 | 52 | 48 | 416 | 384 | <=100 |
| 48M | 14.3 | 13.7 | 1.43 | 1.37 | >=12.8 | >=1019 | >=14 | >=1114 | 50 | 46 | 400 | 368 | <=100 |
| 45M | 13.8 | 13.2 | 1.38 | 1.32 | >=12.4 | >=987 | >=14 | >=1114 | 47 | 42 | 376 | 334 | <=100 |
| 42M | 13.5 | 12.9 | 1.35 | 1.29 | >=12.1 | >=963 | >=14 | >=1114 | 44 | 40 | 350 | 318 | <=100 |
| 40M | 13.2 | 12.6 | 1.32 | 1.26 | >=11.8 | >=939 | >=14 | >=1114 | 42 | 38 | 334 | 302 | <=100 |
| 38M | 13 | 12.2 | 1.3 | 1.22 | >=11.5 | >=915 | >=14 | >=1114 | 40 | 36 | 318 | 287 | <=100 |
| H | 50H | 14.5 | 14 | 1.45 | 1.4 | >=12.9 | >=1027 | >=16 | >=1274 | 52 | 48 | 416 | 384 | <=120 |
| 48H | 14.3 | 13.7 | 1.43 | 1.37 | >=12.7 | >=1011 | >=16 | >=1274 | 50 | 46 | 400 | 368 | <=120 |
| 45H | 13.8 | 13.2 | 1.38 | 1.32 | >=12.4 | >=987 | >=17 | >=1353 | 47 | 42 | 376 | 334 | <=120 |
| 42H | 13.5 | 12.9 | 1.35 | 1.29 | >=12.1 | >=963 | >=17 | >=1353 | 44 | 40 | 350 | 318 | <=120 |
| 40H | 13.2 | 12.6 | 1.32 | 1.26 | >=11.8 | >=939 | >=17 | >=1353 | 42 | 38 | 334 | 302 | <=120 |
| 38H | 13 | 12.2 | 1.3 | 1.22 | >=11.5 | >=915 | >=17 | >=1353 | 41 | 36 | 318 | 287 | <=120 |
| SH | 48SH | 14.3 | 13.7 | 1.43 | 1.37 | >=12.8 | >=1011 | >=20 | >=1592 | 50 | 46 | 400 | 368 | <=150 |
| 45SH | 13.8 | 13.2 | 1.38 | 1.32 | >=12.4 | >=987 | >=20 | >=1592 | 47 | 42 | 376 | 334 | <=150 |
| 42SH | 13.5 | 12.9 | 1.35 | 1.29 | >=12.1 | >=963 | >=20 | >=1592 | 44 | 40 | 350 | 318 | <=150 |
| 40SH | 13.2 | 12.6 | 1.32 | 1.26 | >=11.8 | >=939 | >=20 | >=1592 | 42 | 38 | 334 | 302 | <=150 |
| 38SH | 12.9 | 12.2 | 1.29 | 1.22 | >=11.5 | >=915 | >=20 | >=1592 | 40 | 36 | 318 | 287 | <=150 |
| 35SH | 12.4 | 11.7 | 1.24 | 1.17 | >=11.0 | >=876 | >=20 | >=1592 | 37 | 33 | 295 | 263 | <=150 |
| UH | 45UH | 13.8 | 13.2 | 1.38 | 1.32 | >=12.4 | >=987 | >=25 | >=1990 | 47 | 42 | 376 | 334 | <=180 |
| 42UH | 13.5 | 12.9 | 1.35 | 1.29 | >=12.1 | >=963 | >=25 | >=1990 | 44 | 40 | 350 | 318 | <=180 |
| 40UH | 13.2 | 12.6 | 1.32 | 1.26 | >=11.8 | >=939 | >=25 | >=1990 | 42 | 38 | 334 | 302 | <=180 |
| 38UH | 12.9 | 12.2 | 1.29 | 1.22 | >=11.5 | >=915 | >=25 | >=1990 | 40 | 36 | 318 | 287 | <=180 |
| 35UH | 12.4 | 11.7 | 1.24 | 1.17 | >=11.0 | >=876 | >=25 | >=1990 | 37 | 33 | 295 | 263 | <=180 |
| EH | 42EH | 13.5 | 12.9 | 1.35 | 1.29 | >=12.1 | >=963 | >=30 | >=2388 | 44 | 40 | 350 | 318 | <=200 |
| 40EH | 13.2 | 12.6 | 1.32 | 1.26 | >=11.8 | >=939 | >=30 | >=2388 | 42 | 38 | 334 | 302 | <=200 |
| 38EH | 12.9 | 12.2 | 1.29 | 1.22 | >=11.5 | >=915 | >=30 | >=2388 | 40 | 36 | 318 | 287 | <=200 |
| 35EH | 12.4 | 11.7 | 1.24 | 1.17 | >=11.0 | >=876 | >=30 | >=2388 | 37 | 33 | 295 | 263 | <=200 |
| AH | 32AH | 12.1 | 11.4 | 1.21 | 1.14 | >=10.7 | >=852 | >=35 | >=2786 | 34 | 30 | 272 | 240 | <=230 |
| 30AH | 11.5 | 10.8 | 1.15 | 1.08 | >=10.2 | >=812 | >=35 | >=2786 | 32 | 28 | 255 | 223 | <=230 |
| 28AH | 11.2 | 10.4 | 1.12 | 1.04 | >=9.80 | >=780 | >=35 | >=2786 | 30 | 26 | 239 | 207 | <=230 |
Our Advantages
Why choose us?
√ Producing 700000 sqm per year
√ 15 year manufacturers guarantee on the sealed unit
√ Tested to 151,000 cycles
√ The most famous brand of blinds between glass in China
√ We creating state-of-the-art factories dedicated to the production of sealed units with blinds inside
√ Convenient transportation,ready to delivery to you √ Finished more than 7 million sqm cases
√ Create long-trem cooperation with most of world top500 real estate enterprises/top50 in China
√ 14 years experience in blinds between glass serving
Packaging & Shipping √ We also create our own fleet of delivery system
√ packed as you required
FAQ 1: How long will you give me the reply?We will contact you in 12 hours as soon as we can.2: Could I get samples?Yes, we have materials in stock to help you to get the samples as soon as we can.3: How about the quality of the magnets?We have the certification of ISO, TS and ROSH, we could send the certification test of our company to you.4: How is the price?As we believe the quality is the most important, we will provide the best quality magnet we can with reasonable price.5: Could you provide me the shortest lead time?We have materials in our stock, if you really need, you can tell us and we will try our best to satisfy you.6: Could I visit your factory?Of course, if you need we will help you to visit our factory.7: If I have paid, when will you help me to produce?When we have received the money in our account, we will give you the receipt and arrange to produce immediately.
