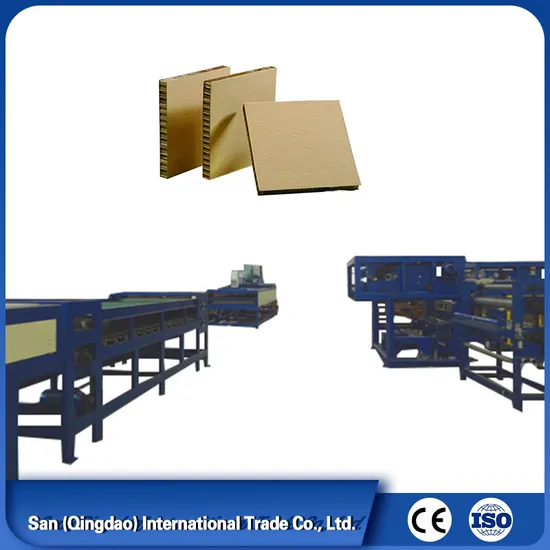

High Quality Automatic Honeycomb Tea Paperboard Making Machine

Product Description

Product parameters

	Specifications For FXCD2000 Automatic Honeycomb Cardboard Production Line
1	main material	corrugated paper, kraft liner board, tea paperboard and so on.
2	adhesive	white latex, starch glue.
3	from paper goes in to cardboard goes out, it is all completed in a fully automated production line. Only 2 to 3 operators needed, high paper utilization, advanced technology.
4	this device is equipped with two sets of glue roller that can produce two different honeycomb pore size cardboard use two cladding.
5	use man-machine interface, PLC control, high degree of automation. Greatly improve production efficiency.
6	this device is exquisite, operation and maintenance simple.

Main technical parameters
Core paper(width*roll diameter)=(1600mm*Φ1200mm)
Core paper weight:110g/m2-140g/m2
Cover paper(width*roll diameter)=(1300mm*Φ1200mm)
Cover paper weight: 180g/m2-400g/m2
paper core thickness: 8-80mm
finished sheet thickness: 8-80mm
finished sheet length: 500-3000mm
production speed: 0-15m/min
heating: electric heating, hot air circulation
equipment installed power: about 170KW
equipment total length: 68 meters
This machine is suitable for the production of honeycomb paper core,cardboard.
Product details
Sample display
Other products
Our exhibition
Certifications
Company information
San (Qingdao) Machinery Co., Ltd was established in March 2005, based on the tenets of providing professional services wholeheartedly, supplying trustworthy and high efficiency products, helping employees build strong selves and live a prosperous life, and contributing to the development and progress of human society. In conformity with the management philosophy of being responsible, leading and realistic, "San" people are summing up experience and innovating constantly in technology, production, sales and service, and sparing no effort to be a leading integrated service provider for paper machines and paper converting machines in China.
Factory workshop
Our Service
⇒One year guarantee for whole machine, all life follow-up service.
⇒24 hours technical support by email.
⇒Technicians oversea set-up and workers training.
⇒Use- friendly English for operation system.
Packaging&transportation
FAQ
Q1: What's your warranty policy?
A1: For the machine,we offer one year warranty.If any quality problems occurred under normal condition during this period ,we will take on the costs of maintenance and replacement and other related cost.
Q2: How to find the matching accessories or wearing parts of the machine?
A2: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with favorable price if it is out of the warranty.
Q3: Do you have technical instruction if I buy your product?
A3: Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help.

---
