Excellent High Consistency Type D Hydraulic Pulper for Making Paper Pulp

Product Description

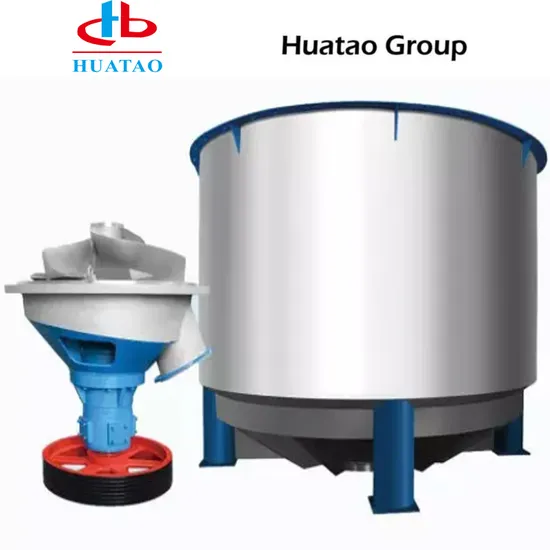

Excellent High Consistency Type D Hydraulic Pulper for Making Paper Pulp Product Description
1.D type hydraulic pulper is mainly used to degrade pulp board, waste paper and broken paper, it is a new energy - efficient vertical hydraulic pulper.

2. The rotor off the center position, so that the waste paper could touch the rotor more quick, and the frequency are higher.
3.The traditional water power pulper produces a unimpeded hydro cyclone, and waste paper move to the center rotor from the entrance according to helix track. But D series water power pulper changed the way it flow, and make the paper touch rotor quickly, thus it shorten the time to crush the paper and improved production capacity at the same time.
4. Thereby, on condition of not increasing power and volume, capacity can be increased. Rotor and extraction disc are above the bottom plane of trough body, thus, one low-pressure flow area can form around rotor to gather heavy impurities, thereby the service life of rotor and extraction plate can be extended.
Product Parameters

Type	HT-25	HT-26	HT-27	HT-28	HT-29	HT-30	HT-31	HT-32	HT-33	HT-34	HT-35	HT-36	HT-37
Nominal volume: m3	15	20	25	30	35	40	45	50	60	70	80	100	130
Treating consistency: %	3-5
Capacity of product : t/d	80-120	140-180	180-230	230-280	270-320	300-370	350-400	400-450	480-550	550-630	600-700	750-850	950-1050
Power of motor: kw	160	185	220	280	315	355	400	450	560	630	710	900	1000

Detailed Photos
