Large Capacity Drum Pulper for Paper Pulping Machine

Product Description

Product Description

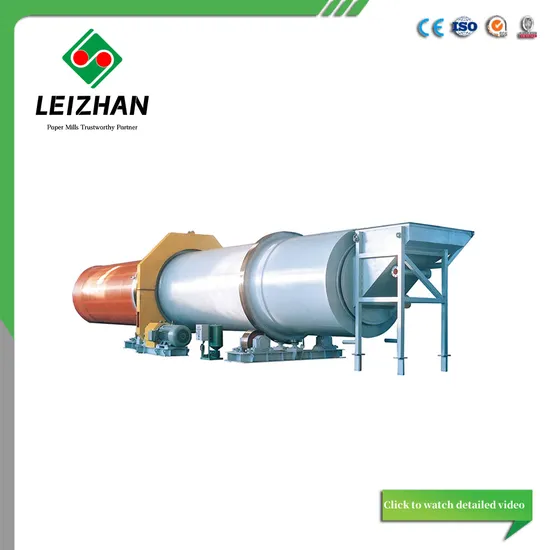

The drum pulper is used for continuously and softly pulping waste paper in high consistency. This equipment can keep the physical property of the fiber at maximum limits because of soft pulping. At the same time, it is used for deinking pulp, the chemical can be fully mixed with waste paper and the ink particles can be separated from the fiber easily.
The equipment is furnished with an automatic control system, radiation weighing system, and consistency control system. The pulping effect is stable.
Detailed Photos
Product Parameters
Advantage: 1. Mainly used for continuous and gentle disintegration and coarse screening of waste paper raw materials at high concentrations. 2. The pulp can be pulped gently at a high concentration of 14%-18%, keeping the physical properties of the fiber to the maximum. 3. Low impurity damage rate and high slag discharge efficiency, which reduces the burden of subsequent processes. 4. Low power consumption per ton of paper reduces operating costs and improves competitiveness. 5. The disintegration residence time is long, the fiber is fully decomposed, and the good fiber loss rate is very low. Basically no wearing parts, continuous pulping, reducing maintenance costs.

Model	ZG2500	ZG2750	ZG3000	ZG3250	ZG3500	ZG3750	ZG4000	ZG4250
Drum Diameter (mm)	Φ2500	Φ2750	Φ3000	Φ3250	Φ3500	Φ3750	Φ4000	Φ4250
Capacity (T/D)	70-120	140-200	200-300	240-400	400-600	550-800	750-1000	1000-1400
Consistency (%)	14-18
Motor Power (kW)	132-160	160-200	280-315	315-400	560-630	630-800	800-1000	1000-1400

Installation Instructions
