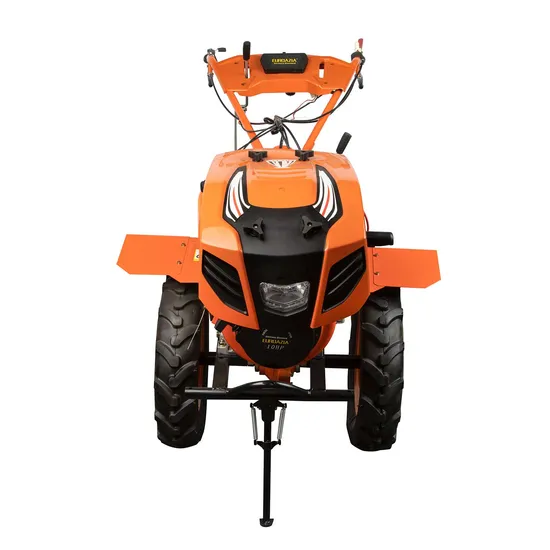

Multi Function Diesel Power Cultivator Machine Compact Structure Rotary Tiller

Product Description

Multi Function Diesel Power Cultivator Machine Compact Structure Rotary Tiller

Welcome to Zhejiang Green Power factory. For 15 years, our factory is specializes in developing and producing all kinds of Gasoline and Diesel Engine, Gasoline and Diesel Generator, Gasoline and Diesel Water Pumps ,Power tiller,Cultivator, Brush cutter and all spare parts.
Our products have been exported to more than 50 countries and areas. Our main markets are in Europe, north America, south America, Africa, Middle East and Southeast Asia area etc.
Most of our items have got various approvals such as CE, EMC and SONCAP certificate, we persistent follow the policy of "observing contracts and keeping promise"and pursue the principle of "sincere, serving customer based on equality & reciprocity".
We are looking forward to going hand in hand with you and co-create resplendence. Product Description
Operating arm is flexible, height can be adjusted up and down, also rotate for 360 degrees, suitable for operation in any direction, save Labour.
Multifunctional, it can be matched with kinds of accessories.
Easy for operation, easy to maintain.
Competitive price with excellent quality.
Small volume, light weight, compact structure and perfect cultivate performance.
Fuel efficient, fast, high temperature resistance.
High work efficiency.
Product Parameters

ITEM	EM-4.2Q	EM-5.4Q	EM-8.2Q	EM-3.8C	EM-4.0C	EM-6.3C	EM-7.5C
Engine Name	Gasoline			Diesel
Engine Model	170F (7HP)	177(9HP)	188F (13HP)	D173F (5HP)	D178FA(E)(7HP)	D186FA(E)(10HP)	D188FA(E) (12HP)
Engine Type	1-cylinder, 4-stroke ,air-cooled			1-cylinder, 4-stroke ,air-cooled
Power	4.2kw	5.4kw	8.2kw	3.8kw	4.0kw	6.3kw	7.5kw
Speed	3600r/min	3600r/min	3600r/min	3600r/min	3600r/min	3600r/min	3600r/min
Starting mode	Recoil /Eletric
Fule volume	5.8L	5.6L	5.6L	2.5L	3.5L	5.5L	5.5L
Oil capacity	0.6L	0.8L	0.8L	0.75L	1.1L	1.6L	1.6L
Clutsh style	Plate cultch
Type of drive	Gear drive
Gear shifting	201R
Cultivation width	60-110cm	70-110cm	70-110cm	60-110cm	70-110cm	70-110cm	70-110cm
Cultivation depth	10-25cm	10-25cm	10-25cm	10-25cm	10-25cm	10-25cm	10-25cm
Task speed	1-1.6km/h	1-1.6km/h	1-1.6km/h	1-1.6km/h	1-1.6km/h	1-1.6km/h	1-1.6km/h
Productivity	0.035-0.08hm2/h	0.05-0.1hm2/h	0.05-0.1hm2/h	0.035-0.08hm2/h	0.05-0.1hm2/h	0.05-0.1hm2/h	0.05-0.1hm2/h
Oil consumption	12-15kg/hm2	10-15kg/hm2	10-15kg/hm2	12-15kg/hm2	10-15kg/hm2	10-15kg/hm2	10-15kg/hm2
N.W.	80kg	105kg	115kg	80kg	115kg	125kg	125kg
G.W.	85kg	110kg	120kg	85kg	120kg	130kg	130kg
MEAS	84x51x63cm	91x56x84cm	91x56x84cm	84x51x65cm	91*56*84cm	91x56x84cm	91x56x84cm

Detailed Photos
Company Profile
Zhejang Green Power Machinery lncorporated Co., Ltd is a professional manufacturer and exporter for all kinds of gasoline engine, gasoline water pump. Gasoline generator, diesel engines, diesel generator, diesel water pump, power tiller and its spare parts.
With high quality products, excellent services and a good reputation, we have won great support from customers around the world.
Thus, our company scale has expanded.
We also offer all kinds of OEM / ODM services. Now our market covers Eastern Europe, South America, Middle East and Africa. We had established long-term, stable and good business relationships with many manufacturers and wholesalers around the world.
We are looking forward to even greater cooperation with overseas customers based on mutual benefits. Sincerely welcome to visit our factory.

---
