Most Popular 1m 1.5m 2m Horizontal Gap Bed Lathe Machine Engine Metal Turning Lathes C6241 with Big Bore 58mm 105mm Lathe Machine Price C6241 C6242 Cm6241 C6236

Product Description

Product Description
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)

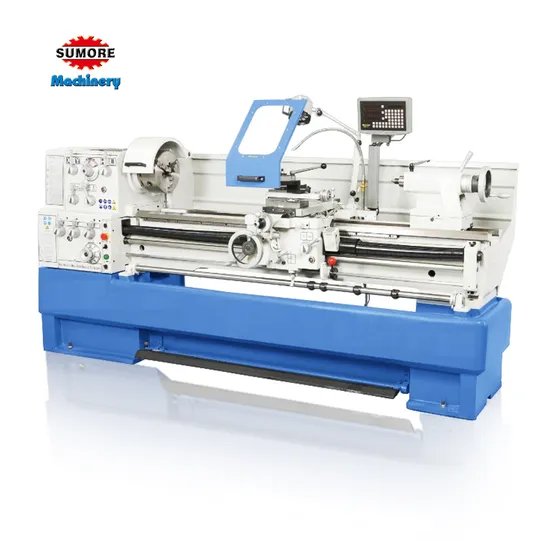

SP2114 lathe machine is with tool post size 25x25mm, the spindle speed could be 12 steps or variable speed. It belongs to one of the most economic horizontal lathe machine for work piece length 2000mm.
Product Parameters

Model	SP2114-I	SP2114-II
Swing over Bed	410 mm	460 mm
Swing over Cross Slide	224 mm	274 mm
Swing over Gap	640 mm	690 mm
Distance Between Centers	1,000 / 1,500 /2000mm	1,000 / 1,500 /2000mm
Width of Bed	300 mm	300 mm
Spindle Bore	58 mm	58 mm
Spindle Taper	MT6	MT6
Spindle Nose	D1-6	D1-6
Range of Spindle Speeds	25 - 2,000 rpm	25 - 2,000 rpm
Range of Longitudinal Feeds	0.031 - 1.700 mm/rev	0.031 - 1.700 mm/rev
Range of Traverse Feeds	0.014 - 0.784 mm/rev	0.014 - 0.784 mm/rev
Compound Slide Travel	128 mm	128 mm
Cross Slide Travel	290 mm	290 mm
Tailstock Quill Travel	120 mm	120 mm
Tailstock Quill Taper	MT4	MT4
Number of Inch Threads	60	60
Range of Inch Threads	2 - 112 TPI	2 - 112 TPI
Number of Metric Threads	41	41
Range of Metric Threads	0.1 - 14.0 mm	0.1 - 14.0 mm
Main Motor Power	4,000 / 5,500 w (5.4 / 7.5 HP)	4,000 / 5,000 w (5.4 / 7.5 HP)
Coolant Power	100 w (1/8 HP)	100 w (1/8 HP)
Overall Dimensions (LxWxH)	2,170/ 2,720 x 1,040 x 1,340 mm	2,170 / 2,720 x 1,040 x 1,370 mm
Packing Size (LxWxH)	2,250 / 2,800 x 1,120 x 1,730 mm	2,250 / 2,800 x 1,120 x 1,730 mm
Gross Weight	1,980 / 2,320 kg	2,045 / 2,385 kg

The main features / advantages are as below:
Vertical and horizontal feed adopts interlocking mechanism and considerable safety design. The spindle bore is supported with precision roller bearings Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. Carriage rapid feed with clutch is available. Larger spindle bore 82mm is available. Easy operating speed change levers Detailed Photos

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
