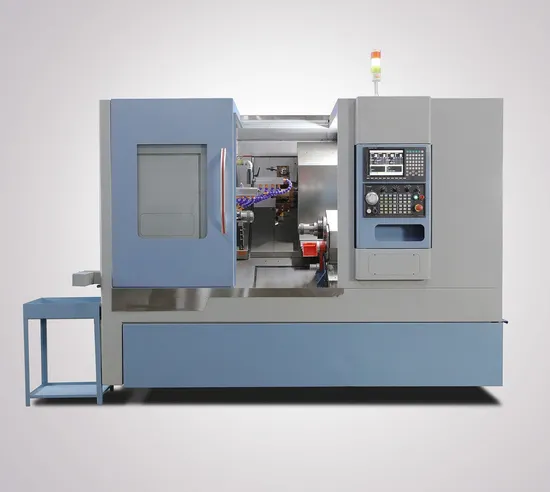

Advanced Double Spindle CNC Machine Milling Turning Lathe for Soft Metals

Product Description

For those in search of ultimate precision and efficiency in metal processing, look no further than our Two Spindle CNC Lathe Grinder Machine. Offering the best value in CNC Milling Machining Centers, this machine is the pinnacle of innovation and performance.
Product Description
Discover an elevated level of machining excellence with our Two Spindle CNC machine tools. These cutting-edge CNC machines boast dual independent spindles that transform machining operations into a seamless, efficient process suitable for demanding sectors such as aerospace, automotive, and textiles. Their superior speed and unparalleled precision cater to the stringent requirements found in these dynamic industries.

Project	Name	specification	Unit
Process range	Max bed rotating diameter	Φ400	mm
	Maximum processing length	500	mm
	Maximum processing diameter (shafts)	Φ75 Φ45	mm
	Maximum processing diameter (disk type)	Φ400	mm
X / Z / Y X2 / Z2 / Y2	X / Z / Y axis travel	500 / 600 / 100	mm
	X2 / Z2 / Y2 Axis Travel	400 / 650 / 300	mm
	Repetition accuracy X / Z / Y	±0.003	mm
	Position accuracy	±0.005	mm
Movement	X / Z / Y	30/30/28	mm
	X2 / Z2 / Y2	24/30/18	mm
Screwdriver	X / Z / Y	32/36/40	mm
	X2/Y2/Z2	32/33/25	mm
Rails	X / Z / Y	35/35/30	mm
	X2/Y2/Z2	30/35/25	mm
Turrets	Turrets	12T
	Turning tool specifications	25X25(rectangular)
	Bore cutter specification	Φ25 Φ32	mm
Spindle	Positive/sub spindle nose form	A-26(75) / A2-5(45 ) - A2-4(36)	/
	Through-hole diameter of main/sub spindle	Φ75(Φ45) / Φ36	mm
	Positive/sub spindle speed	3500-4500 / 5000	rpm
Control System	Positive/sub spindle motor power (electric spindle)	18.5 / 7.5	kw
	X / Z / Y axis servo motor	3.0 /2.2 / 2.0	kw
	X2/ Z2 / Y2 axis servo motor	1.8 / 2.0 / 1.0	kw
	Turret power head milling cutter motor/backside shaft end motor	2.0 / 1.0	kw
Dimension	Length/Width/Height	2700 X 1950 X 2050	mm
	Heavy	4.9	T

Detailed Photos
• Experience the power of simultaneous machining: Our dual spindle CNC machine elevates efficiency by crafting two workpieces concurrently, revolutionizing productivity like never before.
• With the promise of high-precision machining, this machine tool fulfills exceptional precision demands, offering immaculate cuts, whether it's internal or external, ensuring unparalleled roundness and coaxiality.
• Versatility at its finest: This machine flawlessly executes a spectrum of complex processing tasks. From radial and axial cutting to tapping, drilling, hobbing, scribing, and drawing, it's engineered to handle it all.
•Our Precision Spindle guarantees high accuracy, robust performance, and unwavering stability, setting new standards for excellence.
•Crafted with precision in Taiwan, the spindle set utilizes a butterfly spring mechanism to ensure a flawless grip. The four-jaw broach system harmonizes seamlessly with the spindle's taper hole, achieving a perfect tool grab.
• Experience enhanced tapping speed and superior quality with our low inertia spindle motor, designed for rapid acceleration. Direct drive technology with spindle orientation function maximizes performance.
•Lead Screw
Our C3 grade precision screws are designed with pre-tensioning across three axes, effectively mitigating temperature effects and enhancing longevity, ensuring consistent repeat positioning accuracy.
•Line Track Engineered for durability, the P-grade roller type rail across all three axes delivers exceptional rigidity and load capacity, guaranteeing precision through consistent contact between the rolling element and sliding rail.
Anoher Advantages
Benefit from superior processing conditions and a refined production environment. Our advanced equipment, including imported horizontal and vertical machining centers, CNC boring machines, and gantry guideway grinding machines, ensures impeccable workpiece accuracy, enhancing assembly precision and durability.
Advanced detection methodsEmploying the latest in laser technology, our positioning accuracy tests adhere to the rigorous German VDI3411 inspection standards, with meticulous corrections conducted five times each for guaranteed precision.
Every machine undergoes a stringent processing test prior to dispatch, ensuring it meets and surpasses actual processing and precision accuracy standards.

Product sample
• Our CNC machine center is a powerhouse that seamlessly integrates milling, drilling, and tapping functions. • Masterful CNC Machining for diverse metal profiles, from aluminum and steel to copper and non-metal materials, delivering excellence across the board. • The CNC Vertical Machine tools shine across various industries, including 3C electronics, rail transportation, aerospace, and more, proving indispensable with their precision and versatility.d etc.
Packaging & Shipping
FAQ
1.What's the Payment Terms?
A: T/T, 40% initial payment when order, 60% balance payment before shipment.
2.What is your trade terms?
A:FOB CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 30days. if some special machines will be some longer.You can place order accordingto delivery time and ship time we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
5. What is the package of the machines?
A:The machines standard will be packed in wood case.
6:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

---
