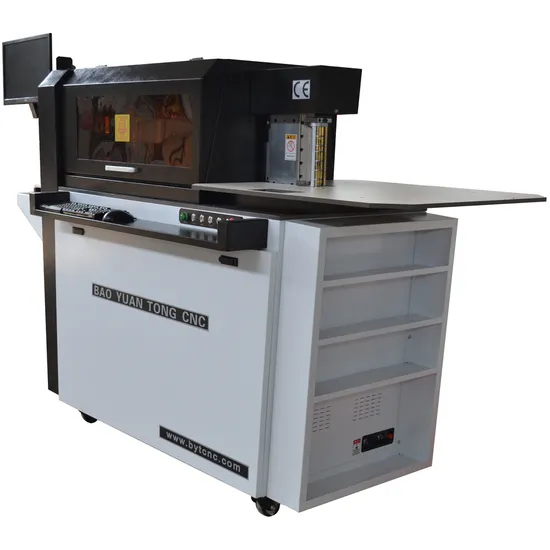

CNC Channel Letter Bending Bender Machine for LED Signage Ads Industry Letter Bending Machine

Product Description

Product Description
BYTCNC- Multifunction Aluminum Stainless Steel
Channel Letter Bending Machin Technical parameter

Channel letter bending machine parameter
Model	BWZ-C1
Working Principle	High precision automatic feeding,trimming,notching and bending
Processing Materials	Flat Stainless steel ,Aluminum profile ,Iron &Copper plat and Floding Aluminum profile
Material Width	10-160mm
Material Thickness	Aluminum profile 0.3-1.5mm Stainless steel 0.3-1.2mm
File format	AI/DXF
Mini pat radius	R≥3.5MM
Mini extrusion Radius	R≥7 MM
Peak Power	2000W
Length Accuracy	0.1mm/meter
Feeding Torque	>45Nm
Planer Slotted Torque Peak	>30Nm
Arc Bending Torque Peak	>100Nm
Working Pressure	0.3-0.6mpa
Voltage	220V 50HZ 1P
Overall Dimensions	2680*880*1590mm
N.Weight	500kg

Product advantage
1. Quality Guarantee Whole machine guarantee 2 years , the motor guarantee 3 years 2.Processing material Width: 10-160mm, Thickness : Aluminum 0.3-1.5mm, Stainless steel 0.3-1.2mm
3.Machining parts 1 All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas. 4.Machining parts 2 In the overall structure the working platform use 14mm whole plate deal with three times plain grinding finish ,the internal workpiece thickness 17mm,ensures the long-term working stability and accuracy
5.Length closed-loop control system The software have Length closed-loop control system ,the length precision ≤0.1mm. Meantime Independent development software system , which can updated according customer need and more easy to use .
6.voltage digital display device The motor and driver use the transformer with voltage digital display device to replace switching power,monitor the voltage situation and remind customer to do the corresponding treatment when the voltage is unstable . 7.Whole machine weight meet 530kgs and more stable. Feeding 1.The feeding roller diameter 45mm and install encoder, the precision and speed is similar as manipulator . 2.Install return material control device which ensure the returned material precision. 3. The guide roll diameter 60mm and ensure the material more straight when feeding.
Aluminum notching 1.Aluminum cutting use 20mm Taiwan PDF guide rail ,the knife 75mm , guarantee the smooth cutting with fast rotating speed and small cutting angle. 2.Cutting mode use motor lifting control ,more stable ,not easy damage material and noise small. 3.Use four-column design ensure the cutting stable and effect.
Stainless steel Notching 1.Planer have current induction automatic knife adjustment, very easy finish cutting depth through software ,more precision than manual adjust. 2.Double Japan Fuji Servo motor and driver for cutting and bending , 20mm leading screw, more fast ,stable and high precision . One set bender can service 6sets laser welding working. 3.The Planner cutter use carbide blade, each blade have 8 sides ,every side can working about 7000 times ,the use cost is very lower and cutting effect is beautiful .
Sample showing
Company Profiles
After-Sales Service
1.Two years quality guaranty. The machine with main parts(excluding the consumables)
shall be changed free of charge when problems happened during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5.Engineers speaking English12 hours on line serviceeach day, free technical support. We
will solve your problemsimmediately by E-mail, fax, MSN, Skype, or telephone.

6. The English operation manual in electronic edition is included.

7. Machine has been adjusted before delivery.

8.Yuantong century is constructing oversea technical support center network, you can
contact us to find your nearest support center.
FAQ:

1) This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.

2) If machine has any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours


3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name
or your detailed address. There will be best shipping freight and machine price send to you.

---
