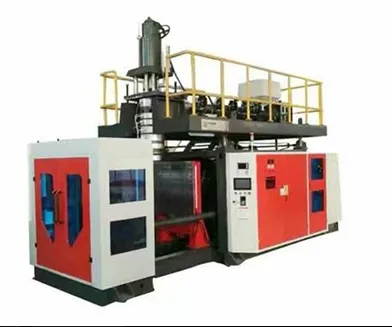

Fully Automatic Intelligent Control Extrusion Blow Molding Machine Can Customize Various Bottle Shapes

Product Description

Basic Specifications	Unit	RB-70	RB-80	RB-90
Maximum product volume	L	7	10	15-20
Machine dimensions	m	3.6*2 3*2.8	4.2*2.6*3	4.8*2.8*3.6
Machine weight	ton	7.2	9	12
Clamping force	KN	220	360	380
Mold spacing	mm	230-510	300-680	300-700
Mold size	mm	480*320	550*420	650*460
Maimum mold size	mm	420*320	500*420	600*460
Minimum mold thickness	mm	240	300	325
Extrusion motor power	kw	18.5	22	37
Air pressure	Mpa	0.8	0.8	1
Air displacement	Mpa	1.2	1.2	1.2
Maximum total powser	m³/min	48	52	75
Average energy consumption	KW	≥12	≥18	≥28
Screw diameter	MM	75	80	90
Screw length to diameter ratio	L/D	25	25	25
Plasticizing capacity	kg/hr	80	95	110
Screw heating power	kw	27	30	36
Hydraulic servo motor power	kw	7.5	11	15
Maximum extrusion dia meter	mm	180	230	280

----------FAQ----------
Q1 :What kinds of product you supply?
A1: Blow Molding Machine, Sticker Labeling Machine, Shrink Sleeves Labeling Machine, Shrink Wrapping Machine, Injection Molding Machine, Blowing Machine, Filling Machine, PackagingMachine, Plastic Products, etc.
Q2: How to tell your enqulry?
A2. Contact us by email, phone call, fax, instant Messenger (Trade manager, Whats app, Skype) and let us know your inquiry.
03: How to choose sultable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technlcal support after we purchased your machine?
A4:-We will provide video technical support, online support.
- lf you need, we can also arrange our professional technical to go aboard to your factory, they will help and teach you how to install and maintenance the machine.

---
