Flat Die Wood Pellet Machine 6mm/8mm/10mm/12mm Pelletizer for Sawdust Wheat Straw Biomass Pellet Mill Line

Product Description

Product Description
Introduction of production line of biomass flat die granulator
Biomass flat-die granulator is a kind of equipment which uses biomass materials to manufacture granular fuel. It has the characteristics of simple assembly and disassembly, stable operation and convenient operation.
The production line is mainly composed of granulator, pulverizer, dryer, conveyor and packaging machine. Biomass materials is treated by a pulverizer and becomes a granular material suitable for processing by a granulator; Granular materials are extruded and molded by a granulator to form granules with a diameter of about 6mm; The granular materials are dried by a dryer to remove water and improve the density and calorific value of the particles; Finally, the granular materials are sent to a packaging machine by a conveyor for packaging and sealing, and become the finished granular fuel.
Biomass pellet fuel is a kind of green renewable energy, which has the characteristics of high energy density, easy storage, transportation and combustion, and is widely welcomed in the market.
Raw materials and finished products
Product Parameters

Model	MT300	MT400	MT450
Power(KW)	22	30	45
capacity(h/kg)	200-300	400-500	600-700
Dimension(MM)	1300*600*1500	1450*700*1700	1600*700*1700
weight	600	900	1150

Product Details 1. We manufacture the machines in accordance with the European standard.
2. All of our machines have passed CE certificate.
3. Our flat die type wood pellet machine is for pressing biomass materials to be solid pellets which are used for burning;
4. You can use nearly all kinds of biomass as raw materials, such as agricultural waste, straw, fodder, forestry wastes, lumber leftover, sawdust, wood chips and so on.
5. As for the power, you can choose diesel engine driven or electric motor driven. And we have many different models for your option.
6. Our pellet machines are ideal pellet press for personal, family and small plants. It's very easy to operate and maintain.
7. Flat die pellet machine is specially for making wood pellets, unique design for motor and gearbox, new roller rotating instead of previous die rotating. More than 20% output capacity increase than old model.
Customized combination

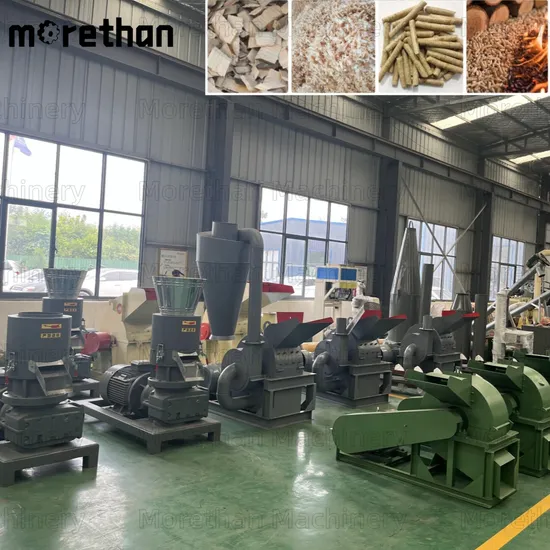

Factory show
Packaging & Shipping
Certifications
FAQ
1. Could I have prices of your products ?Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours.2. Can we customize our logo/website/company name on products?Yes, we offer OEM and ODM service.3. Can I get a discount?Yes, the more quantity, the better the price. Please contact us to get the best price.4. Do you inspect the finished products?Yes, each step of production and finished products will be came out inspection by QC department before shipping.5. Where are you? Can we go to China and visit your factory?Yes, of course. We are in Henan, China. Welcome to our factory.
