Hot Press Machine Rubber Vulcanizing Press Machine Vulcanizer

Product Description

♥ Qingdao HUICAI Cooperate Sincerely With You ♥
Frame Plate Vulcanizer Rubber Vulcanizing Press Hydraulic Press

Product Description ◊Features:
1.Compact structure, beautiful modelling and strong clamp force .
2.Per working position can be heated to 180 degree celsius(adjustable),the lower template can control temperature in room temperature condition to form an effective temperature difference.
3. its unique double temperature station structure and high pressure characteristics are used in all kinds of reflective materials products such as trademark , etc
4.rubber products can be pressed even.
5.pass CE and ISO9001 Standard
◊Uses:
The machine is suitable for all kinds of rubber vulcanization plastic model products and the model products.

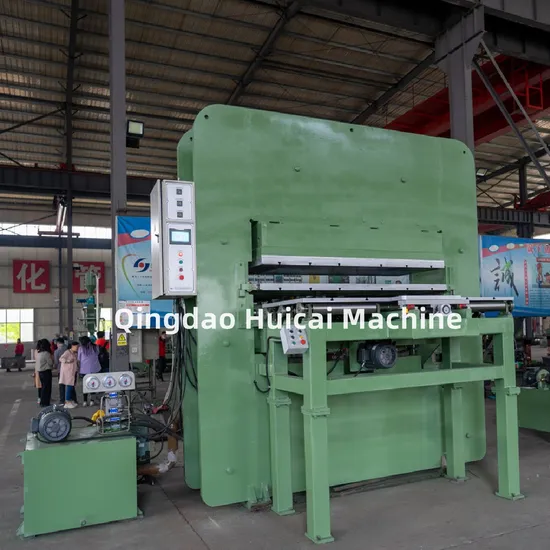

Detailed Photos
Product Parameters ◊Technical Parameters:

Type	XLB-D(Y)700*700*1/1.00MN	XLB-D(Y)800*800*1/1.60MN	XLB-D(Y)1000*1000*1/1.60MN	XLB-D(Y)2000*1000*2/6.00MN
Nominal molding power(MN)	1.00	1.00/1.60	1.00/1.60	60.0
Working layer number	1-2	1-2	1-2	2
Piston stroke(mm)	250-500	250-500	250-500	300
Main motor power(KW)	2.2	2.2	2.2	2.2
Plate clearance(mm)	125-500	125-500	125-500	150
Calefaction manner	Oil,steam,electricity	Oil,steam,electricity	Oil,steam,electricity	Oil,steam,electricity
Configuration	Frame	Frame	Frame	Frame

(1) MAIN FRAME: Using high-quality carbon steel plate Q235, welding forming structure. After eliminating stress, into the whole process.
(2) OIL CYLINDER: The material is QT500 or ZG270-500 or 45# steel .Use QT500 quality castings, can withstand 20MPa or more. double-seal.
(3) PUSH-PULL MOLD DEVICE:This type can be divided into link chain,steel wire and air-operated three types.
(4) GUIDE RAIL:A groove or Ridge, made of metal or other materials, that can withstand, fix, guide and reduce friction in a moving device.
(5)AUXILIARY CYLINDER: The auxiliary cylinder can make the speed up,and can be high working efficiecy.
(6) HYDRAULIC UNIT: Hydraulic system is equipped with low-pressure pump and high-pressure pump. Used by the US company 116/237. The system has safety pressure limiting devices.
◊Company Information:
(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) a one-year warranty and long-term technical support;
(5) Supply of all kinds of rubber machinery: vulcanizing machine, rubber mixer, broken plastic machine, rubber refiner, rubber kneading machine, rubber injection molding machines, vacuum hot press molding machine, hydraulic machine, rubber tableting machine, jaw vulcanizing machine malfunction, precuring equipment, hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line, sidewall belt production line, molding line conveyor; batch closed cooler (cold); cut plastic machine;
(6) The company has import and export rights, the products are exported to countries and regions in the United States, South Korea, Japan, Thailand, Germany;
(7) 2012 was awarded the "AAA grade credit enterprise" and "integrity enterprises in Qingdao City," the title.
◊Foreigners Visit:
♦ Contact us ! ♦
♥ We can according to all your requirements, design your machine you require!
♥ If you are interested in our products, please contact me !

---
