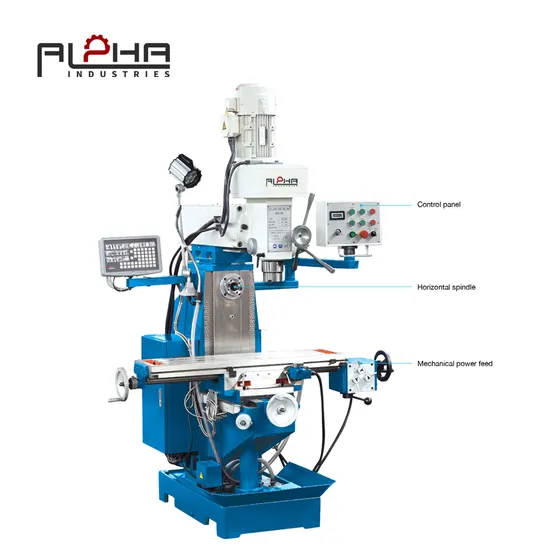

Mdh60 Drilling Milling Machine From China Metal Machine Tool

Product Description

Product Parameters
Standard Accessories
Drill chuck
DrawbarTapping assemblyToolbox&toolsHalogen work lampMilling vise
Coolant system
Chip tray
Xaxis mechanical automatic feed
Optional Accessories
Keyless drill chuck
58pcs clamping kits
Digital readout
X,Y-axis electronic power feed
Xaxis mechanical automatic feed
Automatic spindle feed

Model NO.	MDH60	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	1500×1280×2200mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

SPECIFICATIONS
Model No.	Unit	MDH60Z/MDH60ZA/MDH60ZB/MDH60Zs
max.tapping dia		M16
max.drilling capacity	mm	50
max.end milling capacity	mm	25
max.face milling capacity	mm	100
work table size	mm	1120×260
T-slot size	mm	14
cross travel	mm	230
longitudinal travel	mm	350
taper of spindle bore		ISO40
spindle stroke	mm	120
distance between spindle to table	mm	90-400
range of spindle speed(vertical)	rpm	110-1760
range of spindle speed(horizontal)	rpm	38-1310
motor(vertical)	Kw	0.85/1.5
motor(horizontal)	Kw	2.2
packing size	mm	1500×1280×2200
N.W.	Kg	1350

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
