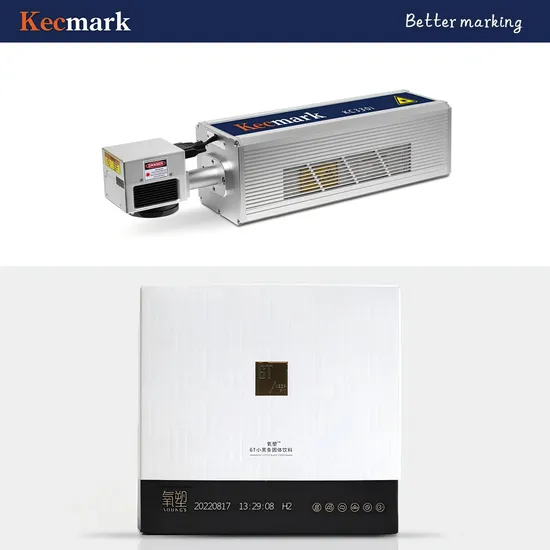

| Laser | Type | Hermetically sealed CO2 RF lasers |
| Pulse frequency range | 0~25KHz | |
| Power | 30W | |
| Beam expanders | 4x (customizable) | |
| wavelength | 9.3μm,10.2μm,10.6μm | |
| laser class | Class 4 laser products ~ in line with IEC60825-1 standard | |
| Identify attributes | Identify the direction | 0- 360° |
| Identify the region | 110~275mm(customizable) | |
| Standard working distance | 165mm | |
| Spot size | 1.8mm ( 0.2mm) | |
| Marking content | 1D and 2D barcodes, icons, Chinese and English and numbers | |
| Scribing speed | The fastest marking speed can reach 20m/s | |
| Interface | Operator interface | 10-inch full-color touchscreen |
| Communication interfaces | RJ45, RS232, RS485, USB SD card | |
| Operating environment | Rated voltage | 200~240V 50/60Hz |
| Ambient temperature | 5~40ºC | |
| The power of the whole machine | ≤300W | |
| Humidity range | non-condensing Relative humidity < 90% | |
| Ingress protection | Standard IP54 (customizable) | |
| Ingress protection | Air-cooled | |
| Product quality | 17kg |
| Application Scenario |
| Company Profile |
| Production Process |
| Production Process |
| Exhibitions |
| Certificates |
| Our Services |
| Technical Support Kecmark provides users with free technical support, including online installation guidance, debugging and training of technicians, to ensure that users are proficient in the operation of the equipment, to ensure the smooth progress of production. | |
| Warranty Maintenance Kecmark provides one year warranty and lifetime maintenance service. During the warranty period, due to mechanical failure or component damage (non-man-made or force majeure factors), except for wearing parts, are entitled to free repair and replacement; beyond the warranty period of the maintenance is only charged at cost. | |
| Software upgrade Users are entitled to free lifetime software upgrades from the date of purchase, ensuring that the equipment is always equipped with the latest features and best performance. | |
| Rapid response After-sales service response time is no more than 8 hours. After-sales engineers will provide a clear reply or online maintenance guidance within 24 hours after receiving the maintenance notice until the equipment is repaired. | |
| Customer access Kecmark regularly visits all customers every year to understand the use and needs of the equipment, and provides professional technical support at any time to ensure long-term customer satisfaction and efficient operation. | |
| Customised solutions Kecmark provides dealers with complete laser coding solutions and the latest application scenarios, and supports non-standard customisation of laser coding machines and holders to meet diversified needs. |
| Packaging&Shipping |
| FAQ |
1.What a CO2 laser marking machine can do? CO2 marking machine is a kind of laser marking equipment with carbon dioxide gas as working medium. Carbon dioxide marking machine is suitable for a wide range of non-metallic and organic materials, such as wood, leather, paper, plastic, acrylic resin and rubber. 2.How to choose the most suitable laser marking machine? There are five points you need to consider before you choose a laser marker : - Consider what materials you want to mark . - Consider the laser power that you need . - Consider what accuracy and speed that you need . - Consider the support . - Else , safety ,budget,working field , 3.How laser marking machine works? Laser marking works by using a focused beam of light to mark the surface of a material. When the beam interacts with the material's surface, it alters the material's properties and appearance , and then leave the clear ,durable and permanent marks on the materials' surface . 4.How to installation and maintenance the laser marking machine? We will provide installation videos for you before shipping , you can check the videos and installation the laser marker ; if any questions during installation , we can support face to face technical service . Even you are navice , you can take that all easily . As for maintenance , the laser marking machine no neeed special maintenance operations , just routine clean is okay . 5.Can I get some tests before I decide which to buy? Yes , free test offering . Before order , you can send the packaging samples to us , the items that you want to mark the code on it , we will do free test for you with different laser , ensuring that you choose the most suitable ones and help you save money and energy . 6.What's the main difference between the laser marker and inkjet printer? Laser marker and inkjet printer are both coding method for industrial use . The biggest difference between this two method is that laser marker doesn't need consumables and maintenance , it has obvious advantages on anti-conterfeiting , the laser marks are legible and durable on the whole life cycle of the product , and it's resistant to erasure . And the inkjet printer , they deliver coding without alter the materials' properities and appearance , just leave the codes on the surface of the materials . On anti-conterfeiting and traceability solutions , it has safety risks . |
