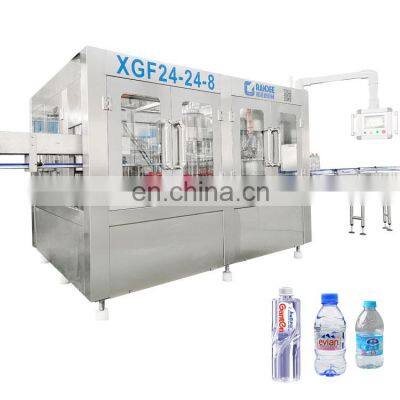

XGF24-24-8 automatic pure water filling machine / distilled water production lineProduct DescriptionMachine description:1.The mineral water filling machine adopts advanced technology from abroad, and combined with the characteristics of our country, self- developed. 2.It adopts a large number of new technology, new process and new structure. It has top quality. 3.The feature: the neck of the bottle was stuck between the bottle clipping board and upper formed plate, then the star wheel transmission let the … run, and bottles were transported. So that to achieve the three process(washing, filling, sealing).The advantages: low wear rate of bottle, easy changing of bottle model, precise and smooth driving, scientific process flow, etc. 4.Besides, all the parts of the equipment that contact with liquid are made of imported stainless steel or food engineering plastic with wear resistance and ozone proof. Its electric system mostly adopts imported part. With standards food sanitation, stable and reliable property, low failure rate, full automatic control and perfect after-sales service, this kind of machine is popular among the foreign and domestic customers. And it is an ideal equipment for different kinds of beverage manufacturing enterprise. Features:1.It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.2.There is no need to adjust the height of equipments through neck holding tech for bottle transportation. And what is only to change some spare parts.3.High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.4.By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier. Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.5.High speed and large flow filling valve assures the high filling speed and exact fluid level.6.Parts contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard. 7.The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain's height. 8.3-in-1 monoblock is composed of rinser, filler, capper, frame, sealing window, main motor and transferring system, cap unscrambler and electric control system etc. Main washing filling capping machine: Main technical parameter:Automatic water filling machine production line packaging specificationsMaterial: SS304/316Bottle materialShapeFilling volumeFilling level(mm)Neck typePET/Glass bottleSquare/round/flat bottle100-2250mlAccording request±1mmAs requiredAdjustable specificationsBottle size: bottle diameter≤110mm, bottle height≤340mmIf using square bottles, then bottle separating system will be addedFilling temperature2℃-40℃ level control: float ball and pneumatic butterfly valve.Bottle labeling typePacking system Min, Spec.Palletizing systemManual/ automaticHot melt roll-fedPVC shrink labelFull label/half labelFilm shrink packingRobert packingCarton packing2*3 2*4 3*43*5 4*4 4*5 4*6 6-30bags/minLow positionGantry palletizerRobot palletizerUser Ambient ConditionsTemperature: 2-40℃, Humidity: no dewBottle feed-inConveyor with screw for glass bottleAdopt air-conveyor for PET bottle DetailsWashing Part:The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling part:Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder.High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.Air conveyor Air Conveyor is mainly used in the automatic filling production line of PET bottle beverage or water. It is the intermediate transportation of connecting blowing machine, unstacking machine, bottle storage conveying table and filling machine.Conveyor system Conveying path support on the ground by tripod, driving motor adopt frequency control, it connects with washing filling and capping 3 in 1 machine and keeps pace with it. The filled bottles are conveyed by the conveyor system. Driving system is running by a main motor that adopts gear drive mode.Related productRO System This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. Blowing Machine with different options 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities.2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. Automatic PVC sleeve labeling machine Capacity: 100-350bottles/min can be chosenLabel material: PVC PET OPS, etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max)Automatic PE film shrink packing machineFlow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ coolingSpeed: 20-25packages/minMax. packing size: 420*300*350mm(LxWxH)Max. sealing size: 650mm Company Information Our exhibitionFAQQ1: How to find suitable water filling machine or complete water production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cnQ2: How to start a water factory business ? What's my budget?A2: First confirm the source water, send the water samples to your local department and get an water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 10000liters/hr,etc. Q3: How to confirm the bottle shapes that is very attractive for your customer ?A3: Confirm the plastic bottle size is 355ml, 500ml, 1000ml,1500ml, 2000ml,5000ml or 10000ml, then our engineer can design the bottle shapes for you. Q4: Which kinds of machines included in one complete water production line?A4: PE Resin, injection molding machine, automatic or semi auto plastic blowing molding machine, water filling machine, sleeve shrink labeling machine or self adhesive labeling machine or OPP labeling machine or rotary labeling machine, semiautomatic or full automatic L type shrink packing machine, high speed shrink packing machine, laser or ink printer, palletizer, pallet wrapping machine. Q5: Are you a trading company or a manufacturer?A5: We are the manufacturer of water / beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q6: Do you have technical support after we purchased your machines?A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q7: If you buy our machines, can you offer us wear-out spare pats?A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
