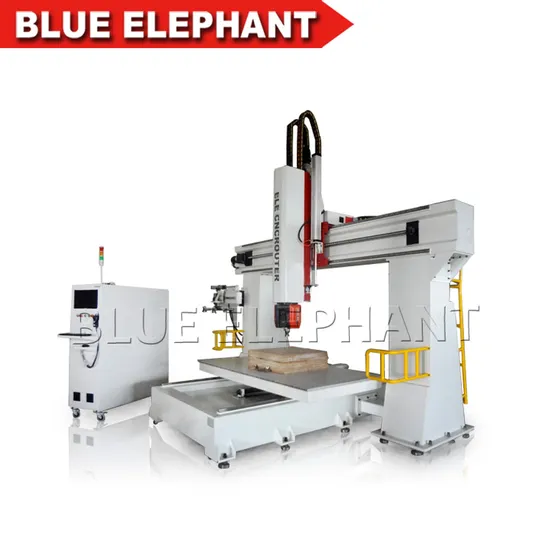

Cost-Effective Blue Elephant 3D Wooden Carving 5 Axis CNC Router 1224 Router for Foam EPS for Sale in UK

Product Description

3d wooden carving 5 axis cnc router machine in chinese homemade with factory price
5 axis cnc router feature
1.European OSAI control system, powerful and easy to operate, high precision.
2.Z axis travel can increase to 1.5 meters, large format, suitable for large-scale three dimensional surface protection.
3.Intelligent processing of cross-border protection.
4.Diversified control can promise the processing speed, idling speed, cutting speed , greatly improving the quality of processed products and processing efficiency
5.All components adopt international famous brands
5 axis cnc router technical parameters

Item		Description
Model		ELECNC-1224 5 axis cnc router
Movement type		Movable table
X working area (MM)		2400
Y working area (MM)		1200
Z working area (MM)		900
C travelling		±213°
A travelling		±120°
Beam spacing(MM)		4260
Beam Height(MM)		2150
Vacuum pump		Germany Becker pump
Supplier for Double pendulum head		10.0 KW Italian HSD
Range of speeds		22000 RPM/min
Servo Motor brand		YASKAVA
Table size (MM)		1200*2400
Product fixed form		Vacuum table
Tool magazine		8 positions Carousel Tool Storage
Control system		OSAI
Machine size		3600*4000*3500mm
Total weight		12T
Total Power(kw)		24KW
Voltage		AC380V/60HZ
Maximum lifting weights		20T
File exchange		G code
Maximum speed	X Axis	45m/min
	Y Axis	45m/min
	Z Axis	20m/min
	C Axis	20m/min
	A Axis	20m/min
Guarantee time		One year of guatantee in case of non-human damage

5 axis cnc router applications
Mold Industry:Casting mold,autmobile,sanitary ware mold,ship,yacht,aviation industry,etc.
3D processing:Chairs,fiberglass trimming,resin and other non-metal carbon-mixed work pieces processing.
Furniture Industry: Wood furniture, wooden jewelry box, wood carving
After sale-service
1, Within 7 days since your local customs clearance: if the cnc machine's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc machine parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc machine parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the cnc router machine
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
Factory view
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China. Our machines including ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on.
Blue Elephant cnc router have passed the CE, SGS, ISO9001 etc, International Certifications, accept more than 50 countries import licensing and all machine parts use import European brand.
Customer visiting
Packaging and shipping
Packaging and shipping:
1.Outside Package: Standard export wooden case .
2.Inner package: strech film .
We can package according to your requests.
For shipping, because our machine frame is heavy duty steel welded structure, it's too heavy not suitable for any air shipping,
it must shipping by sea, for the specific shipping charge, please contact us we'll calculate the cheapest shipping freight to you.
For terms of payment, you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better

---
