Durable Woodworking Edge Trimming Saw

Product Description

Product DescriptionThe Guide Rail Type Edge Trimming Saw is used to cut and trim the roughness of the four sides,
or adjust the size of the board, which is widely used in
plywood, woodworking, furniture manufacturing,
or other areas where high precision cutting is required.
It is equipped with a guide rail system that helps the saw follow a straight line or predetermined path for stable cutting.
USAGE
1. Woodworking and Furniture Manufacturing:
Especially suitable for cutting large-sized wood boards, such as plywood, particleboard, solid wood boards, etc.
2. Construction and Renovation:
Suitable for cutting floors, gypsum board and plastic board.
Working Principle:
The Guide Rail Type Edge Sawing Machine
typically consists of a guide rail with a locking system,
the saw is fixed on the guide rail and cuts materials along it.
The size and cutting method of the saw blade are similar to those of a traditional circular saw, but due to the guide rail,
the saw will not deviate from the predetermined cutting line.

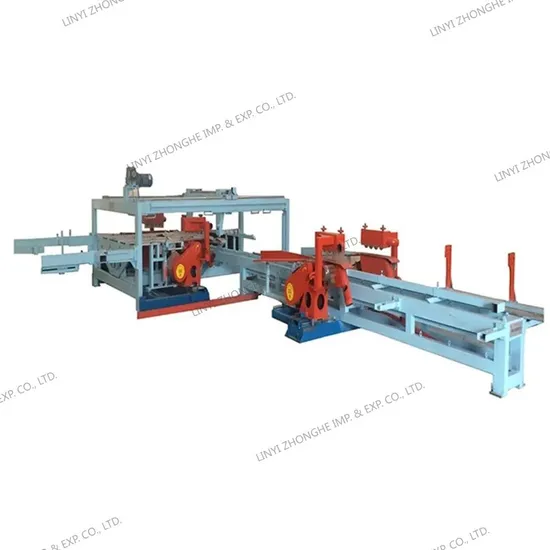

Machine Photos for Reference
Product Parameters

1	Model	BDDS-4*8
2	Main frame material	100 * 120 mm square steel tube
3	Cutting size	1220 * 2440 mm
4	Cutting thickness	maximum 60 mm
5	Diagonal tolerance	less than 1 mm
6	Straightness tolerance	less than 0.5 mm
7	Saw head	Casting, fine finishing
8	Bearings	NSK (Japan brand)
9	Voltage standard	380V, 50HZ
10	Pneumatic element	AKS
11	PLC brand	SIMENS
12	Touch screen displayer	SIMENS
13	Main elctrical parts	CHINT
14	Inverter	DELTA
15	Feeding speed	0 - 30 m / min, (adjustable)
16	Saw blade speed	6800 turns / min
17	Electrical control panel	dust-free and powder painting
18	Total Motor power 40.4 KW	main saw blade head 7.5 KW, 4 pieces
		small saw blade head 1. 1KW, 4 pieces
		lift table motor 3 KW, 1 piece
		working table motor 1.5 KW, 2 pieces
19	The first saw guide rail	30 mm diameter, Six arrises guide
20	The second saw guide rail	30 mm diameter, cylindrical guide
21	Saw blade	4 big saw blade, 4 small saw blade (Germany BAK)
22	Gross weight	4800 KG (It needs 1*40HC container to load)

Machine Features
1. Guide rail system:
The saw moves along the guide rail, ensuring a straight and precise cutting line,
avoiding any possible deviation in manual operation.
2. High efficiency:
Workers can superimpose multiple layers of boards on the machine to process them at the same time
3. Precise cutting:
The guide rail ensures that the saw cuts along the predetermined path, which is very important for jobs that require high precision, especially for straight cutting of wood boards, plywood or other panels.
4. Adjustable cutting depth:
It allows users to adjust the cutting depth, suitable for materials of different thicknesses.
5. Clean and accurate cutting edges:
Using the guide rail system can ensure a smooth and flat cutting edge, reducing the subsequent trimming.
6. Easy operation: Users do not need to control the cutting direction too much.
7. Reducing cutting errors:
The guide rail limits the movement of the saw, reducing the problem of inaccurate cutting due to operator error.
Company Profile
LINYI ZHONGHE IMP. & EXP. CO., LTD. is professional in solutions of wood veneer production machine,
plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood,
other related material and parts for wood processing industry, construction material and machine, etc.The detail business range is as following:1. Wood veneer production machine:Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer,
wood veneer clipper, wood veneer stacker, veneer tape, etc.2. Plywood production machine, film faced plywood machine:Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine,
glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw,
sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.3. Particle board machine and MDF board machine.4. Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener. Certifications
Our Advantages
1. Rich experience and professional design
We have lots of experience in exporting plywood machine production.
The layout of the factory is designed reasonably to meet safety production and high efficiency.
2. Competitive price
ZHONGHE has own factory, with the same configuration, the price is competitive.
And we are familiar with the Chinese market, our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the production line until it runs well and asked for quick responses to customer questions.
4. One-stop solution
ZHONGHE provides one-stop service, including market analysis and professional technical consultation, raw materials, equipment installation, personnel training, professional after-sales service team, renovation of old equipment.
5. Quality control
We guarantee strict quality control of equipment in production, before leaving the factory and a complete quality management system for purchased parts.
Customers are always welcome to make videos or come to the factory to know the production status.
6.Pre-sales service
According to the needs of customers, to provide data, pictures, videos for reference, to give timely answers to customer questions, to make customers satisfied is our purpose
7.After-sales service
We offer installation, one year warranty, lifetime parts replacement and repair services.
Customers can contact us anytime and anywhere by email, and if necessary,
we will let professional technicians to solve the problem.
FAQ
Frequently Asked Questions
About Customization :
Product parameters are for reference, all of our products size, yield, color, etc., can be customized
Delivery date:
25-30 days
Price changes:
The price of the product will change according to the real-time price of the raw material
Nature of the Company:
We are a company integrating industry and trade, with our own factory
Can I visit the factory:
Welcome

---
