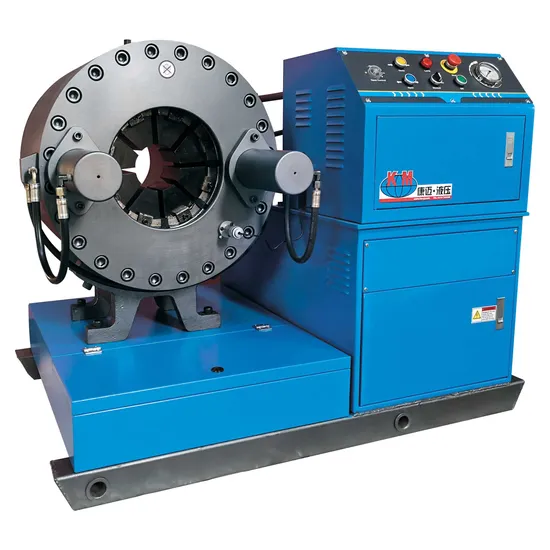

Strong Force Steel Pipe Crimping Machine Ball Valve Crimper for 6" Hose

Product Description

Product Description
Product Parameters

Crimping range	6"4SP
Opening without dies	ø270mm
Max die opning	≥38mm
Accuracy	0.01mm
Motor & voltage	5.5kW/380V (ohter voltage is available)
Noise level	≤75dB
Oil tank volume	150L
Machine weight	1080kgs
Package weight	1230kgs
Machine dimension	1250x830x940(mm)
Package dimension	1350x1000x1180(mm)

Detailed Photos
The head is processed by CNC
technology, ensuring high
precisionand long service life The dies style are like swallow tail,
which is easy to install and ensures
the well performance The cabinet under the machine head
is convenient to store dies & tools The back dust cover can effectively
prevent dust The digital control system is
easy and intelligent to operate Our Advantages1).Low center of gravity, easy to operate;
2).Huge opening with large swaging force;
3).Mechanical seals with good tightness;
4). High efficiency, available for continuous operation
Applications
1).Suitable for high precision pressing for low and high pressure hose diameter, starting from 3" up to 6" internal hose pipe.
2).For oil pipeline, oil engineering maintaince.
Company Profile
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leak or broken. The reasons are
like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,
the
hardness is above 55HRC. The die hardness is enough so that the die life is very long and
easy
to crimping high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forged not cast. Casting is cheap but has small hole
on the
machine head. The piston will divide from casting machine head.

---
