Inline Thermoforming Plastic PP PS Pet Plastic Sheet Extrusion Line

Product Description

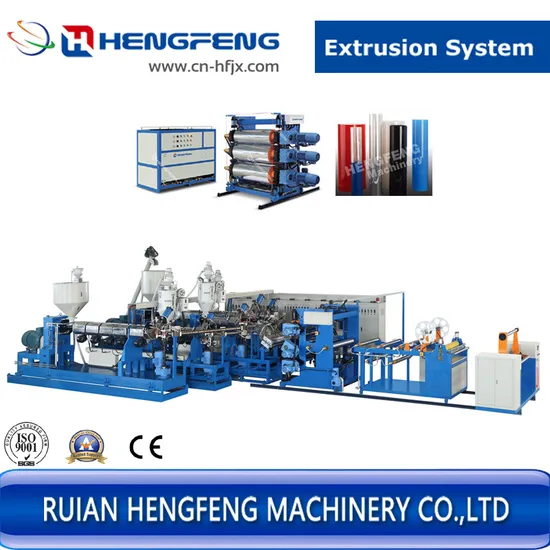

Thermoforming Plastic PP PS Pet Plastic Sheet Extrusion Line (HFSJ50/30-120/33-700B)
Applicant:
Sheet Extruder is a combination of extruder, head,calender,hauloff,rewinder and electric control box
The drum,screw,screen changer and die head are made of high quality alloyed steel with high hardness,strong corrosion resistance and long operating life after nitrogen treatment.The head is adopted JINGCHENG T-type branch pipe decreasing
type construction,so the flow passage is convenient for solution to flow without stagnation and the thickness of products will be smooth and even. The felt wrapped circulation and cooling inside roll and bring a prefect effect.
The temperature of die head, screen changer and the drum separately controlled.
Configuration & Features:
Screw\drum and screen changer are made of high quality alloyed steel (38CrMOAlA) with nitriding treatment
Full-Auto continues belt-type screen changer without machine stop
Calendar designed with double water circulation and cooling system
360° Double station rewinder
Japan Yaskawa Transducer
Germany Schneider electric elements
Technical Parameter:

Plastic Sheet Extruder Main Technical Parameter
Max. output	160kgs/hr
Thickness range of sheet	0.2-2.0mm
Sheet Width	700mm
Screw Diameter	€ 100mm
Lip Thickness	0-3mm
Roller Diameter	€ 350mm
Adjust Distance of roller	0-50mm
Screw Ratio	30.1
Width of die mouth	800mm
Barrel heating treatment	1000mm
Number of roller	3
Extruder motor	45kw
Barrel heating power	5.5kwx5zones
Die head heating power	> 2.5kwx5zones
Screen changer heating power	5kw
Calender motor	4kw
Rewinder motor	1.1kw
Air pressure	0.6Mpa
Water consumption	20m³ /h
Air consumption	0.1m³ /h

Packaging shipping:
Our company
Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d
Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic
Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries
And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,
Chile, Bolivia, Saudi Arabia, Peru, etc.

FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
5. What about the payment term?
Mostly 30%T/T in advanced, the rest need be paid by TT before shipping
6. Machine adjustment and installation
We can send technicians go to customers' country for machine adjustment
And installation

---
