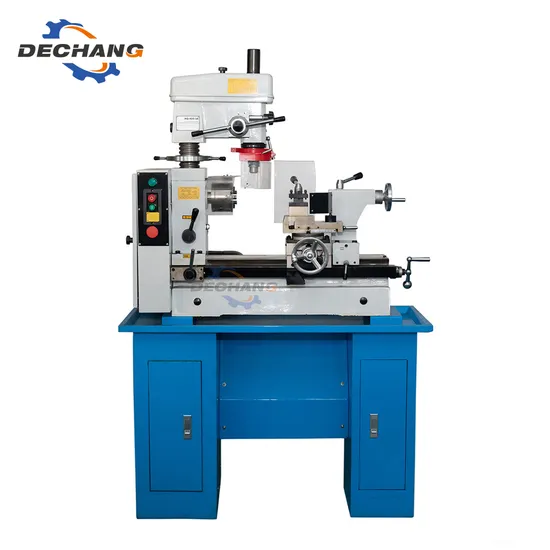

Metal Combination Multi-Purpose Lathe Machine Hq400 Combination Lathe Milling Machine

Product Description

Metal Combination Multi-Purpose Lathe Machine HQ400 Combination lathe milling machine
Product Description
Features:
Metric or Imperial thread cutting
Combination Metal Lathe/Milling/Drilling/Threading
Various functions, small area occupation and economization
A kind of combination machines with turning, milling, drilling and threading.
Main technical specifications:

Specifications		HQ400-3A	HQ400-3B		HQ400-3L
Turning	Swing over bed	420 mm	420 mm		420 mm
	Distance between centers	400 mm	400 mm		500 mm
	Max. longitudinal travel	380 mm	380 mm		480 mm
	Max. cross travel	120 mm
	Taper of spindle	M.T.3
	Spindle hole	20mm
	Step of spindle speed	7
	Range of spindle speed	160-1360 r.p.m
	Barrel travel	70 mm
	Barrel taper	M.T.3
	Metric thread range	0.2-3mm
	Inch thread range	8-120T.P.L
	Longitudinal range of automatic feeding	0.05-0.175mm/r
	Cross range of automatic feeding	/		/	/
Drilling & milling	Max.drilling capacity	15 mm
	Worktable size	200*150 mm
	Max.end mill capacity	20 mm
	Max.face mill capacity	63 mm
	Spindle travel	85 mm
	Headstock travel of up and down	80 mm			80 mm
	Spindle taper	M.T.3
	Step of spindle speed	14
	Range of spindle speed	117-1300r.p.m
	Swivel angle of headstock	±360°
Motor	Motor power	0.55kw
Shipping data	Packing size	1030*580*1070 mm			1132*580*1070mm
	N.weight/G.weight	180kg/215kg	180kg/215kg		185kg/226kg
	Loading amount	44pcs/20container

Detailed Photos
Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
