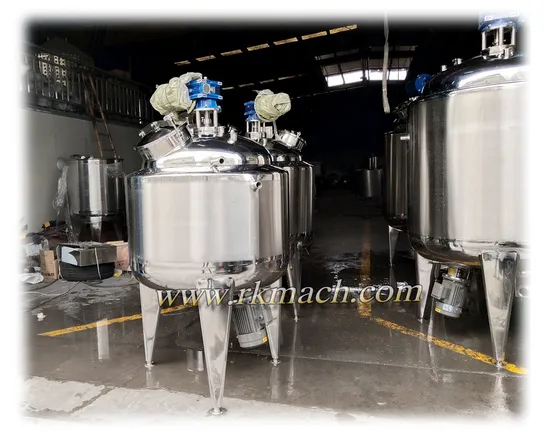

2000 Gallon Stainless Steel Mixing Tank with Bottom Homogenizer

Product Description

customized stainless steel mixing tank with bottom scraping agitator / emuslirying mixer / high shear mixer for cream gel sanitaizer paint coationg mixing and dispersion
This stainless steel mixing tank is a kind of stainless steel container used to the mixing of fresh milk, cream, yogurt and paste or puree for vegetable.
Made of food grade SUS304 stainless steel, 3-wall structure with movable cover.
Inner wall contact to milk / juice directly, 3mm / mirror polish
Jacket wall contact to the heating medium. (Heating medium can be steam or hot water)
the dimple jacket can bear 60psi steam pressure
Outer shell made of stainless steel 304

All stainless steel (304) sanitary construction 100% TIG welded and sanitary polished with quality controls, inspection and pressure testing.
Specification (customized) 4 heavy duty stainless steel legs with leveling footpads Interior shell: 304 stainless steel, thickness 11 gauge (3mm) Dimple jacket: 304 stainless steel, thickness 11 gauge (3mm) Exterior shell: 304 stainless steel, thickness 14 gauge (2mm) Interior and exterior finish bright polish to 3A 240 grit, sanitary surface 1" steam / hot water inlet pipe 1" condensate / water outlet pipe Lifting Lugs Fully welded exterior shell Polyurethane insulation thickness 50mm on side and bottom CIP spray ball Hinged lid Air space heater on lid Jacket design pressure 50.8 PSI Jacket working pressure 43.5PSI 60rpm mixing speed , 220V 60Hz 3phase power supply All the welding of this stainless steel mixing tank are finished by skilled worker using argon arc welding.
Temperature control: manual control or automatic with affordable automatic control system
