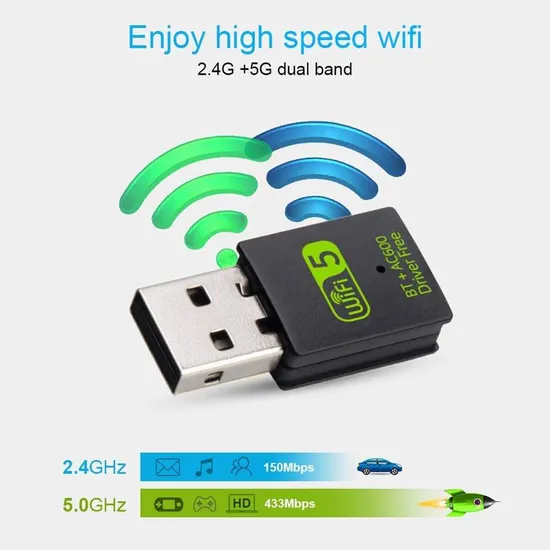

600m Dual-Band 2.4G/5g Wireless Network Card and Bluetooth 5.0 Adapter 2 in 1

Product Description

Product Parameters Bluetooth Description:
Main chip: RTL8821CU
Bluetooth version: BT5.0
Bus type: USB2.0/USB3.0
Transmission distance: 10-20 meters
RF power: 10dBm (max)
Antenna gain: 2dBi
Transmission speed: 3M/S
Working current: 100mA - 200mA (BTWIFI) The current varies with the working mode
Supported operating systems: WIN 7/10/WIN11 operating system (Win10/11 driver-free)
WIFI Description:
Supported standards and protocols: IEEE 802.11ac IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK
Transfer speed: Dual-band 2.4GHz - 150Mbps 5GHz - 433Mbps
Frequency range: 2.4~2.4835GHz/5.15~5.825GHz
Product size: 1.3*0.6*0.3 inch
Modulation: 802.11 g/n: OFDM
802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps)
AC80-MCS9: -55/-1dBm
Transmission speed: 802.11ac: Max 433Mbps
802.11b: 11,5.5,2,1 Mbps
802.11g: 54,48,36,24,18,12,9,6 Mbps
802.11n: up to 150Mbps
Receive sensitivity: 802.11b: -76/-1dBm; 802.11g: -65/-1dBm
802.11n (HT20), -70/-1dBm; 802.11n (HT40), -65/-1dBm, AC80-MCS9: -55/-1dBm
Transmission distance: Up to 100 meters indoors, up to 200 meters outdoors (depending on the environment)
RF power: 16dBm (max)
Antenna gain: 2dBi
Spread spectrum technology: DSSS (Direct Sequence Spread Spectrum)
Working current: 100mA - 200mA (BTWIFI) The current varies with the working mode
Supported operating systems: Windows XP/Vista/7/10/11 operating systems (driver-free), Mac OS Apple system
Operating environment: Working temperature: -20ºC to 45ºC
Storage temperature: -40ºC to 70ºC
Operating humidity: 10% to 90% RH non-condensing
Storage humidity: 5% to 90% RH non-condensing

Product Description Wireless wifi Bluetooth two-in-one (driver-free version), wireless network card that supports Windows (driver-free) and Bluetooth functions (Win8/10/11 driver-free). This network card comes with a Windows driver, Plug-And-Play driver, Simple and fast operation. Completely avoid the phenomenon that external network customers often report that the computer has no optical drive, the installation is complicated, and the driver CD has problems.
The wifi Bluetooth two-in-one (driver-free version) is supported by 11AC technology and has dual-band advantages. The wireless transmission rates of the 2.4GH band and the 5GHz band can reach 150Mbps and 433Mbps respectively. The 2.4GHz band has strong compatibility and long transmission distance; the 5GHz band channel is pure, with less interference and low latency. Users can freely choose one of the frequency bands according to the actual use environment and equipment conditions, effectively avoid wireless interference, and surf the Internet freely.
PS: It is recommended that when using WiFi and Bluetooth at the same time, WiFil be connected to the 5G band for better performance.
