260mm 1 Year Sumore Wooden Box 50mm Fresadora Milling Machine

Product Description

Product Description
ZAY series Universal vertical milling drilling machine price SP2229/SP2230China metal manual bridgeport universal gear drilling milling machine 50mm horizontal vertical universal milling machine fresadora universal cutter mini horizontal vertical milling machine for hobby mini manual vertical milling and drilling machine price SUMORE small milling drilling machine cheap mini torno fresadora Universal Vertical Drilling and milling machine for metal Hobby desktop mini desktop mill drill milling machine Mini metal milling machine made in China, but same quality with Japanese made milling machine Bench Type mini universal Milling Machine is one of our most economic and durable mini universal Milling Machine. It sells very well; it is new condition not used universal Milling Machine. And it is small in size and delicate in design. This milling machine is made in China, but with same quality of Japan milling machine. The main features are as below:
Quick detais
1.Drilling capacity:50mm
2.Horizontal milling dia.:100mm
3.Vertical milling dia.:32 mm
4.Head tilt left & right:+45°
4.Spindle taper:R8,MT4,ISO30 or ISO40
5.Spindle speed: 90-2000rpm/38-1310 rpm
7.Working tabel:280*1120mm
7.Power:2200W
Features/Advantages
1.Three axis hardened treatment, high rigidity.2.vertical horizontal multi-functional ,drilling ,milling, boring operation.3.X axis mechanical feed,Y.Z axis can be added the device4.Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate
5.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press6.Easily shiftable gear drive ensures power transmission without losses7.With V-belt spindle drive and gear spindle drive8.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
9. Drilling Milling machine adopts belt drive, low noise, suitable for drilling, expanding, reaming and milling on various common materials
10.Drilling Milling machine has 12 speeds and a wide range of speeds, suitable for processing various commonly used soft and hard materials
11. Spindle box and worktable can be raised and lowered, and can also be rotated around column, which expands processing range
12.This machine tool can be equipped with multi-axis machines
Product Parameters

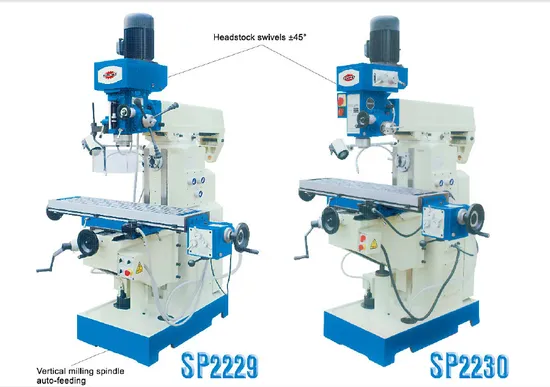

Model SP2229 Drilling Capacity 30 / 50 mm Boring Capacity 120 mm Longitudinal Axis Travel (X) 600 mm Cross Axis Travel (Y) 260 mm Headstock Axis Travel (Z) 120 mm Effective Table Size 1,120 x 280 mm Spindle Taper MT4 / R8 / ISO30 / ISO40 Spindle Speed Range 90 - 2,000 / 38 - 1,130 rpm Distance Between Spindle to Table 490 mm T-slot Amount 3 Head Tilt Angle (Left / Right) 45° / 45° Motor Power 850 / 1,500 / 2,200 w Voltage and Frequency Customrized Overall Dimension (LxWxH) 1,400 x 1,630 x 2,350 mm Net Weight 1,200 kg Gross Weight 1,350 kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
