Full Automatic Fireworks Packing Paper Pipe Tube Core Cutting Making Machinery

Product Description

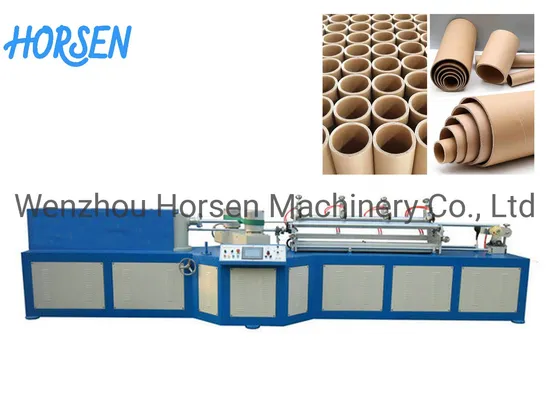

PAPER TUBE MAKING MACHINE
USE: Suitable for all kind of paper tube / paper can production. Such as package tin, tea caddy, food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc.
FEATURE: Numerical control servo cutter device, high precision cutting; Automatically cut, automatically fall pipe, automatically change speed and revert; With online multi-cut blades, no need secondary cutting, save labor and time. Stable production at the highest speed 45 m/min Specification:

Technical Parameter
Number of roller		3-8 layers
Tube diameter		15-100 mm
Tube wall-thickness		0.5-3 mm
Core mould fixed way		Flange chuck
winding head		2
Cutting way		Servo synchronism multi-blade cutting
Gluing way		Double sides
Operator		1-2 person
Winding speed		3-60 m/min
Speed control		Transducer
Mainframe size & Weight
Mainframe size		6000*1600*1600 mm
Area space		10000*10000 mm
Weight		3000KG
Driving system
Main motor	5.5 KW
Reducer type	WPDO155
Reduce type	RV40-1:7.5
Conveyor reducer type	0.37 KW
Cutting motor	Servo motor
Cut left-right control	Synchronous belt + servo motor
Synchronism control cutting system	servo system
Glue pump	750 W

1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any inquiry, pls feel free to contact us. We will try our best to satisfy with you !

---
