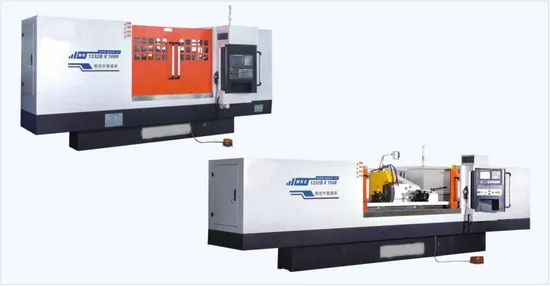

Mk1332b Mkei332b CNC Cylindrical Grinding Machine

Product Description

Product Description
Main functions and features
• The CNC cylindrical grinder is suitable for batch production ofcylindrical parts grinding with high performance-to-price ratio.
•The electricl system is controlled by KND 1000G. and the executive system is driven by the CNC servo driver and servo motor. Worktable longitudinal travel and wheelhead cross traverse which with the high infeed accuracy are realized by the servo motors via the ball screw, transmission. With the touch screen and human-machine interface. The machine is easy to operate. With other systems and configured online automatic measuring instrument can also be based on user needs.
• The machine is simple and easy to operate. After simple training, it can be operated easily. By setting the parameter of longitudinal grinding or plunge grinding via the touch screen, an auto-grinding for the different workpiece is realized. With the function of worktable trip-stop, the machine can grind more than one journals of one workpiece automaticaThe machine is simple and easy to operate. After simple training, it can be operated easily. By setting the parameter of longitudinal grinding or plunge grinding via the touch screen, an auto-grinding for the different workpiece is realized. With the function of worktable trip-stop, the machine can grind more than one journals of one workpiece automatically. The process parameter of more than onejournals can be set discretionary for long grinding of plunge grinding.
• With the functionofwheeldressingandcompensation automatically.
• Wheelhead spindle is supported by three bushing hydro-dynamic bearing, and high precision hydro dynamic-static bearing is also available for the user.
• Timing provision of lubrication for machine moving parts according to program designing. Automatic lubrication of all moving parts. Tailstock has two ways:hydraulic and manual.
•Workpiece, oil pump, coolant pump is driven by a separate motor.
• The headstock is available to achieve continuously variable by frequency motor according to user needs.
Product Parameters

Description	(unit)	MK1332B×500/1000/1500/2000/3000 MKE1332B×500/1000/1500/2000/3000
Dia to be ground	(mm)	φ8~φ320
Max.length to be guound	(mm)	500,1000,1500,2000,3000
Center height	(mm)	180
Distance between centers	(mm)	500,1000,1500,2000,3000
Headstock center	()	5# 5# 5# 5# 5#
Tailstock center	()	4# 4# 4# 5# 5#
Max.workpiece weight to be ground	(kg)	150
Wheel size	(mm)	φ600×75xφ305
Wheel peripheral speed	(m/s)	38(45m/s)
Wheel spindle rotation speed	(r/min)	1210/1433
XMin.pulse amount in X-axis	(mm)	0.001
ZMin.pulse amount in Z-axis	(mm)	0.001
Total motor power	(kw)	21.475,21.475,21.475,30.075,33.075
Longitudinal servo motor	(kw) 4.7(23Nm),	4.7(23Nm),4.7(23Nm),4.7(23Nm),4.7(23Nm)
Traverse servo motor	(kw) 3.9(15Nm),	3.9(15Nm),3.9(15Nm),4.7(23Nm),5.5(27Nm)

Detailed Photos

---
