Basic Info.
Certification
ISO 9001:2000, CE
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Hydraulic Bending Machine
CNC Controller
Da69t Delem Holland Brand
Electrical Components
Schnei Der France Brand
Gear Pump
Sunny USA Brand
Seal Ring
Nok Japan Brand
Hydraulic System
Boschrexroth Germany Brand
Ball Screw ,Linear Guide
Hiwin Taiwan Brand
Grating Ruler
Gv Italy Brand
Tubing Connector
Emb Germany Brand
Main Motor
Siemens Germany Brand
Transport Package
in Nude
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
480.00cm * 450.00cm * 225.00cm
Package Gross Weight
4000.000kg
Product Description

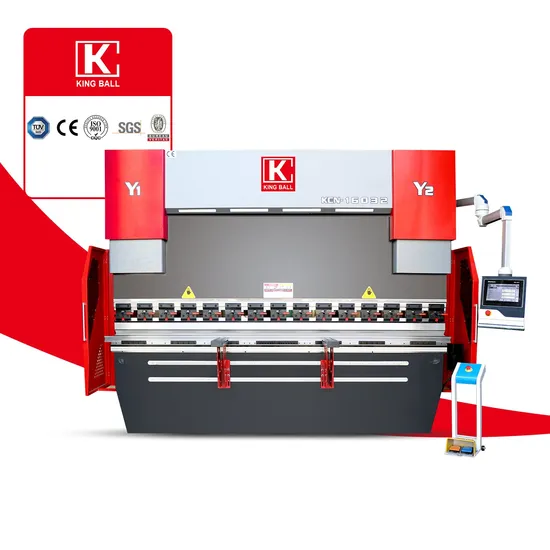

Electro hydraulic Synchronous CNC Press Brake
Model: KCN-20040
6+1 Axes CNC Control(X,Y1,Y2,R,Z1,Z2,W)
X: Backgauge front and back; Y1,Y2, : Left and right oil cylinder stroke
R : Backgauge up and down; Z1,Z2: Left and right stopper movement
W: Worktable crowning(optional)
Main functions and features
*Overall welded and processed structure.
*Electric hydraulic proportional servo synchronization, ensuring repeated accuracy.
* Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02.
* Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.
*Delem CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance.
* Ram stroke(Y1, Y2),backgauge (X, R,Z1,Z2) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision.
*Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
Technical Parameters
NO. | Item | Parameter | Unit |
1 | No minal pressure | 2000 | KN |
2 | Table length | 4000 | mm |
3 | Max. Slider stroke | 200 | mm |
4 | Max. Shut height | 480 | mm |
5 | Between columns | 3100 | mm |
6 | Throat depth | 400 | mm |
7 | Main motor power | 15 | KW |
8 | Down Speed | 130 | mm/s |
9 | Pre ssing Speed | 9 | mm/s |
10 | Return Speed | 120 | mm/s |
11 | Control axes | X+Y1+Y2+R+Z1+Z2+W | / |
12 | X a xes Stroke | 500 | mm |
13 | X axes Speed | 250 | mm/s |
14 | R axes Stroke | 200 | mm |
15 | R axes Speed | 60 | mm/s |
16 | Z axes Speed | 100 | mm/s |
17 | Backgauge Stoppers | 3 | / |
| | L | 4500 | mm |
18 | Overall dimension | W | 1950 | mm |
| | H | 2700 | mm |
19 | Machine weight | 13800 | kg |
Detailed Pictures
Detailed Photos
Backgauge with ball screw and linear guide, high precision, fast speed and low noise
Double sliding front support arm installed on the linear guide, movable easy.
DA-69T CNC system
*3D and 2D graphical touch screen programming mode
*3D visualisation in simulation and production
*17" high resolution colour TFT
*Full Windows application suite
*Delem Modusys compatibility (module scalability and adaptivity)
*USB, peripheral interfacing
*User specific application support within the controllers multitasking environment
*Sensor bending & correction interface
Main configuration
Name | Producer |
CNC controller | DA 69T D elem Holland brand |
Electrical components | Schneider France brand |
Gear pump | Sun ny USA brand |
Seal ring | NO K Japan brand |
Hydraulic system | Bo sc hrex roth Germany brand |
Ball screw ,Linear guide | HI WIN Taiwan brand |
Grating ruler | G IVI Italy brand |
Tubing connector | E MB Germany Brand |
Main motor | Sie me ns Germany Brand |
The standard accessories are in the below:
*Anchor bolt
*Hex nut
*Seal ring
*Gasket
*Grease gun
*Allen wrench
*Foot switch
*Front support arms
*Electrical box key, control panel key
*Operation manuals
>>
