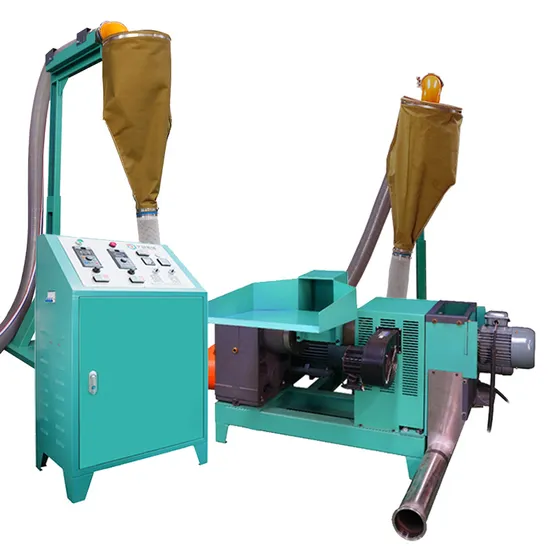

PVC Pelletizing Machine for Waste Plastic Recycling

Product Description

The single-screw low-temperature air-cooled plastic granulator is an efficient and energy-saving plastic recycling and granulation equipment, specially designed for processing various plastic materials. Using advanced single-screw extrusion technology and low-temperature air-cooling system, the machine can operate stably under low-temperature conditions, effectively protecting the physical properties of the material, and is suitable for the recycling and granulation of PE, PVC, EVA, PLA and other plastics.
Core features
Efficient single-screw design: Optimized screw design ensures that plastic materials can be melted evenly, improving extrusion efficiency and output.
Low-temperature air-cooling technology: The unique low-temperature air-cooling system effectively reduces the temperature during the granulation process and reduces energy consumption, while protecting the material from thermal degradation and maintaining the quality of the final product.
Energy saving: low energy consumption design, compared with traditional granulators, energy consumption is reduced by more than 30%, while reducing noise and heat emissions, complying with environmental protection requirements.
Wide range of applications: It is suitable for recycling and granulating a variety of waste plastic materials, such as agricultural film, packaging bags, bottle caps, etc., and is widely used in the field of plastic recycling and regeneration.
High-quality granules: The granulation is uniform, smooth, and bubble-free, fully meeting the high standard requirements of downstream production.
Technical Parameters

model	JX-DW75	JX-DW90	JX-DW125	JX-DW150
total power	~14KW	~19KW	~35KW	~63KW
Output	30~60kg/h	50~80kg/h	110~150kg/h	180~200kg/h
Dimensions	1650*1300*650	1800*1450*800	2200*1600*1100	2450*1050*1500
weight	~700kg	~850kg	~1400kg	~2000kg
electricity demand	AC380V 50HZ TN-S

---
