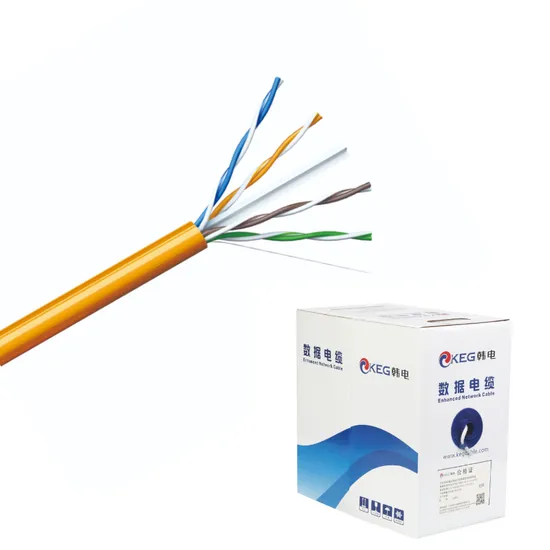

Pass Fluke Test Solid Bare Copper UTP CAT6 LAN Cable Network Cable

US$0.15-0.29 10,000 Meters (MOQ)

Basic Info.

Model NO.

Cat6 Lan Cable

Cover Material

PVC/LSZH

Type

Cat 6

Material Shape

Round Wire

Conductor Type

Solid

Wire Core Material

Bare Copper Wire

Certification

CE, ISO, RoHS, CCC, VDE

Model

CAT6

Brand

OEM

Conductor Diameter

0.57±0.008mm /23AWG

Insulation Material

HDPE

Insulation Diameter

1.02±0.02mm

Rip Cord

Nylon

Cross Skeleton

4.5*0.45mm

Jacket Diameter

6.2±0.5mm

Jacket Thickness

≥0.55mm

Conductor Elongation Ratio

≥15%

Insulation Elongation Ratio

≥300%

Jacket Elongation Ratio

≥125%

Linear Resistance

≤8.5Ω/100m

Insulation Resistance

≥5000mΩ/Km

Working Temperature

-20ºC to +60ºC

Bending Radius

≥10×out Diameter

MOQ

10km

Transport Package

305m Box

Specification

CAT6 UTP Cable

Trademark

OEM

Origin

Ningbo, China

HS Code

8544491100

Production Capacity

70, 000 Boxes/Month

Product Description

1. CAT6 UTP Cable 23AWG 0.52mm/0.53mm/0.55mm/0.57mm BC
2. Bare copper for superior conductivity, Reach performance to 350Mhz
3. Have CE, UL, DELTA, GHMT, CPR-Eca, Dca, Cca, B2ca certificate 4.100% Solid Copper Conductors Ningbo Handian Cable is a professional cable manufacturer to make bulk cable and patch cord for more than 20years.
We are the TOP 3 in the network lan cables business in Ningbo city.
Our cables are compliance with all international standard and have all necessary certificate:
ETL, Delta, GHMT, CE, IQNet, 3C, EU CPR, UKCA etc.
Our production capacity is more than 60,000 boxes per month.
1. All of our Brand are KEG or OEM Brand;
2. All of products we offer are high quality and competitive price;
3. Payment : T/T,L/C etc.
4. Packing :100m coil, 305m/easy pull box, 305m/reel insdie box, 305m/wooden drum, 500m/1000m/ wooden drum etc.
