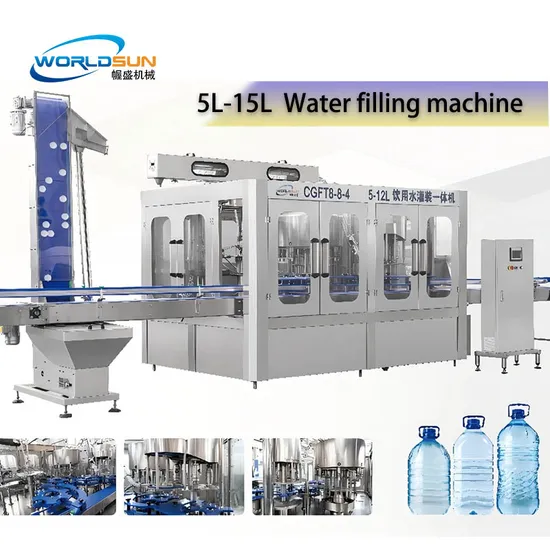

Drinking Water Pet Bottle Filling Machine Line Pure Water Bottling Plant / Production Line

Product Description

Product Parameters

Item / Model	CGF8-8-3	CGF14-12-5	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15
Number of Rinsing heads	8	14	18	24	32	40	50
Number of heads	8	12	18	24	32	40	50
Number of Capping heads	1	4	6	8	10	12	15
Capacity-500ml (B/H)	3200bph	4200bph	6000bph	1200bph	5000bph	18000bph	24000bph
Power	2.5kw	3.5kw	3.75kw	4.5kw	5.75kw	6.55kw	7.5kw
Air consumption	0.3m3/min.	0.3m3/min.	0.4m3/min.	0.4m3/min.	0.5m3/min.	0.5m3/min.	0.6m3/min.
Weight (T)	2.1	2.8	3.2	3.5	4.2	5.3	6.5
Filling Temperature	0-90ºC
Applicable materials	water and other light liquid
Applicable container	Bottle ,cup
Container materials	Plastic ,Glass,Metal
Cap type	Plastic Screw cap,Press-and-Turn cap,Flip cap, stopper cap, ROPP cap, crown cap ,twist-off cap
Container diameter	30-95mm
Container height	50-260mm, 100-350mm

Product Description
Bottle Rinsing:The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.
The gripper equipped with high-efficient spray nozzle, it can develop to any position of in-wall of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.
By adjusting the height of the rotary parts to adapt for different bottle height
The motivation is derived from the driven system in the framework passed by gear.
The supplying of rinsing water is controlled by solenoid valve.
The water filling machine is known as gravity filling machine and is mainly used for still water or other light liquid. The empty comes to filling valve and the the bottle mouth is sealed,Therefore, a connected system from the filling tank to the filling valve and bottle is created. Water flows from the filling tank into the bottle through the filling valve. At the same time, the filling valve discharges the air inside the bottle. When the bottle is filled, the liquid blocks the exhaust pipe of the filling valve. The air inside the bottle cannot be continuously discharged, so the filling valve stops filling.
the full bottle is transferred to the capping part through hold neck transition poking wheel. The Anti-screw blade holds the bottleneck, keeps bottle upright not rotating.
The screw capping head keeps in revolution and automation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam.
There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap. By adjusting the height of the rotary parts to adapt for different bottle height.
Company Profile
Zhangjiagang Worldsun Packaging Machinery Co., Ltd. was established in 2012. As a company focused on the design and manufacturing of bottle filling line equipment, it is committed to providing customers with high-quality filling production line equipment. In the years of business operation, it has accumulated rich experience. In many fields of bottled product production, we can provide customers with perfect production line planning and process design solutions.Project Case
>>12000bph Ketchup and chilli sauce filling and packing project(complete system)
>>18000bph juice filling line for glass bottle
>>15000bph carbonated soft drink production line
After Sales Service
After-sales guarantee and considerate service. We provide a 2-year warranty and a lifetime maintenance service commitment. The professional after-sales team responds at any time and provides timely and effective technical support and solutions.
