CD6250C horizontal heavy duty metal lathe machinery with ISO9001

Product Description

Feature
Hardened and ground bed ways.
Gears in headstock precisely ground to reduce noise.
Kinds of threads.
Electric system is reliable and safe.
Electromagnetic brake can be amounted when needed, and color at user option
Main Specification :

SPECIFICATION		CD6236B/C	CD6240B/C	CD6250B/C	CD6260B/C
CAPACITY	Max.swing over bed	Φ360mm(14")	Φ400mm(16")	Φ500mm(19-3/5")	Φ600mm(23-3/5")
	Max.swing over cross slide	Φ185mm(7-1/4")	Φ225mm(9")	Φ325mm(13")	Φ360mm(14")
	Max.swing over gap	Φ490mm(20")	Φ550mm(21-1/2")	Φ630mm(25")	Φ730mm(29")
	Effective length of gap	260mm(10-1/4")
	Center Distance	1000mm/1500mm/2000mm/3000mm(40"/60"/80"/120")
	Bed Width	330mm(13")
HEADSTOCK	Spindle hole	B:Φ65mm(2-3/5")/ C: Φ80mm(3-3/5")
	Spindle nose	ISO-D8
	Spindle taper	70mm(2-3/4") 85mm(3-1/4")
	Spindle speed(Number)	(15steps)24-1600/24-1600rpm(15steps)
FEEDS	Longitudinal feeds range	66kinds 0.072-4.038mm/rev
	Cross feeds range	66kinds 0.036-2.019mm/rev
	Metric threads range	66kinds 0.5-28
	Inch threads range	66kinds 1-56inch
	Module threads range	33kinds 0.5-3.5mπ
	Diametric threads range	33kinds 8-56DP
CARRIAGE	Max.travel of top slide	130mm(5")
	Max.travel of cross slide	300mm(12")
	Max.size of tool shank	20mm×20mm/25×25mm
TAILSTOCK	Dia.of tailstock sleeve	Φ65mm(2-1/2")
	Taper of tailstock sleeve	MT5
	Max.travel of tailstock	120mm(4-3/4")
MOTOR	Main drive motor	5.5kw			7.5kw
	Rapid traverse motor	250w
	Coolant pump motor	125w
PACKING LxWxH	Center Distance(1000mm)	2420mm×1150mm×1800mm(96"×46"×71")
	Center Distance(1500mm)	2920mm×1150mm×1800mm(115"×46"×71")
	Center Distance(2000mm)	3460mm×1150mm×1800mm(137"×46"×71")
N.W/G.W	Center Distance(1000mm)	1640/2290kg 1800/2500kg	1680/2330kg	1770/2350kg	1800/2500kg
	Center Distance(1500mm)	1850/2550kg 2010/2760kg	1890/2590kg	1910/2610kg	2010/2760kg
	Center Distance(2000mm)	2090/2860kg	2130/2880kg	2150/2920kg	2250/3070kg

Standard Accessories:
3-jaw & 4-jaw; Steady rest & follow rest;
Face plate; Drive plate; Thread-cutting diameter; Longitudinal touch stop; Work lamp; Coolant system; Full-length splash guard; Foot brake and brake ribbon; Change gears; Dead centre and centre sleeve; Oil gun; Padding; One whole set spanner.
Optional Accessories:
Rapid travel
Live centre
Digital readouts (SINO)
CE-conformity (Chuck guard and Tool-post guard)
Magnetic electrical brake
Taper cutting function.
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

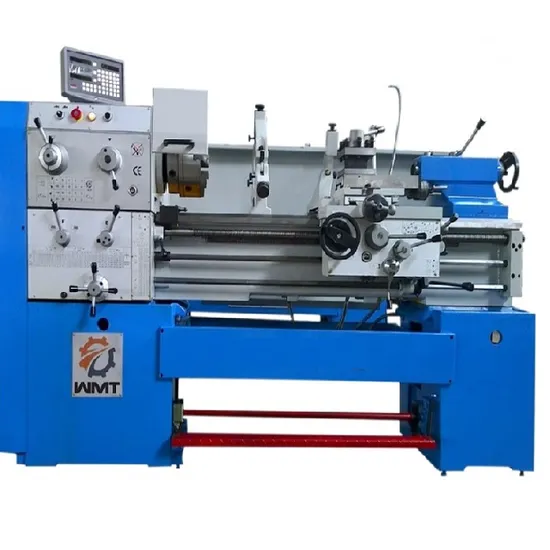

Machine Details for CD6250C Lathe

---
