US$330,000.00-870,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
Five-Axis Gantry Machining Center
Certification
GS, CE, ISO 9001
Tworkbench T-Type Groove
12×22
Ythe Y-Axis Itinerary
3200mm
Z-Axis Itinerary mm 1000 Principal Axis
13000mm
Speed of Mainshaft
6000rpm
Taper Hole of Spindle
Bt50
Outline Dimension
14000/5200/5200mm
Specification
14000/5200/5200mm
Packaging & Delivery
Package Size
1400.00cm * 520.00cm * 520.00cm
Package Gross Weight
80000.000kg

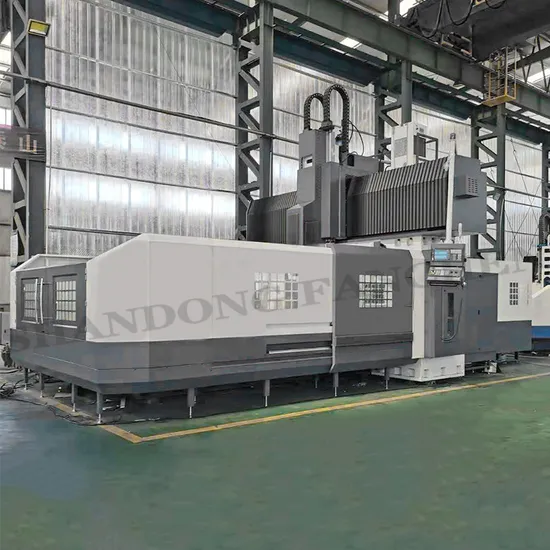

Product Description
| modelGMB6032 | unit | specifications |
| operating platform |
| tablesize | mm | 6000/3000 |
| Workbench bearing | kg | 3500 |
| TWorkbench T-type groove | mm | 12×22 |
| Work table height from the ground | mm | 550 |
| Spindle end face to the workbench | mm | 250-1550 |
| Spindle center to the front of the column | mm | 550 |
| Distance between two columns | mm | 3400 |
| Distance from work bench to cross beam | mm | 1800 |
| route or distance of travel |
| xx-axis itinerary | mm | 6000 |
| yThe y-axis itinerary | mm | 3200 |
| zz-axis itinerary mm 1000 principal axis | mm | 1300 |
| main axle |
| speed of mainshaft | rpm | 6000 |
| Power of main motor | kw | 30 |
| taper hole of spindle | | BT50 |
| attended mode | | Direct connection |
| rapid traverse |
| xThe x-axis moves quickly | m/min | 12 |
| yThe y-axis moves fast | m/min | 12 |
| zThe z-axis moves quickly | m/min | 12 |
| Cut into | m/min | 1-10000 |
| Three-axis servo-motor torque | N.m | 48/40/30 |
| tool magazine |
| Knife library capacity | T | 40(60) |
| Knife diameter | mm | 127/240 |
| Tool length | mm | 500 |
| Knife weight | kg | 25 |
| precision accuracy |
| positioning accuracy | mm | 0.008 |
| Repeat positioning accuracy | mm | 0.005 |
| ponderance | kg | 80000 |
| outline dimension | mm | 14000×5200×5200 |
FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
