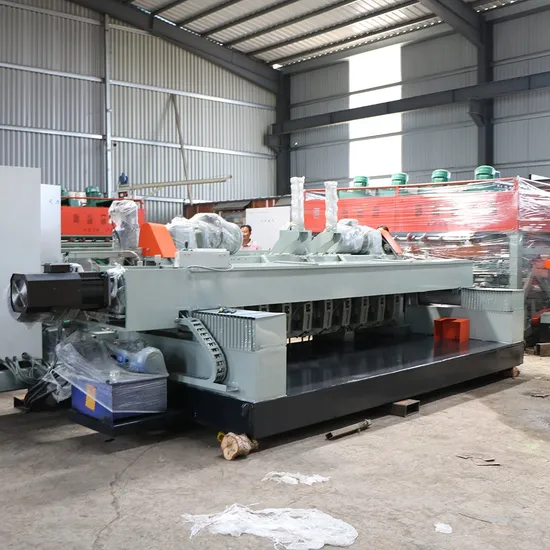

1500mm 1900mm Wood Veneer Peeler Rotary Cut Veneer Peeling Lathe with CE

Product Description

1500mm 1900mm Wood Veneer Peeler Rotary Cut Veneer Peeling Lathe with CE
Rotary Lathe Wood Veneer Peeling Machine for Plywood Veneer Woodworking Machinery Product Description
The veneer peeling line not only improves the quality and precision of veneer production, but also greatly improves the production efficiency and the degree of automation of the whole machine.The veneer peeling line is one of the main equipment for producing plywood. We can provide veneer peeling machine, Automatic Stacker machine and Wood Log Debarker and the related knife grinding machine.
Product Parameters

No	Veneer Peeling Machine
1	Type	4feet (1300mm)	8feet (2600mm)
2	Model	GT-014feet	GT-018feet
2	Cutting Size(Diameter*Length)	500*1300mm	500*2600mm
4	Min Residual Diameter	28mm	32mm
5	Max Stroke of Tool Slide	500mm	450mm
6	Cutting Thickness	0.5~3.6mm	0.5~3.6mm
7	Cutting Speed	50m/min	48-65m/min
8	Power	21.5KW	60 KW
9	Peeler blade(L*W*H)	1400mm*180mm*16mm	2700mm*180mm*16mm
10	Clipper Size(L*W*H)	1400mm*90mm*12.7mm	2700mm*90mm*12.7mm
11	Dimensions (L*W*H)	4100mm*2150mm*1600mm	6100mm*2200mm*1650mm
12	Total Weight	About 6000KG	About 11000KG

Detailed Photos



Packaging & Shipping


After Sales Service

GTCO MACHINERY SERVIER RULE
Pre-sale service:
1) Listen to customer needs
2) Provide free preliminary machine design plan and flow chart,choose and supply the most reasonable configuration equipment;
3) Support remote meetings and visit factory remotely;
4) Offer the professional advice to customer to confirm the final selection
5) Support site visits to factory;
In-sale service
1) All equipment is qualified for installation and commissioning before leaving the factory; supports remote video quality inspection;
2) The disassembly and packaging process of all machines before leaving the factory, providing photos, videos, and annotations;
3) Online or offline free training of buyers' operators (China)
4) Assist buyers to install and debug equipment (overseas)
After-sales service:
1) 7*24 hours online service; remote real-time video resolution;
2) During the first installation and commissioning process, problems encountered during normal operation should be solved in time;
3) Periodic process inspection and use effect, and timely suggestions for machine maintenance;
4) Lifetime free technical guidance
5) Update the latest industry information in a timely manner.
Welcome to contact with us !
