Plum Blossom Winder Machine with Speed Control 400mm Wire Range Car Cable

Product Description

Discover the premium craftsmanship of our Wire Coiling Machine, a versatile Carton Winding Machine, and superb Wire Bobbin Machine. Expertly engineered for precision and efficiency.

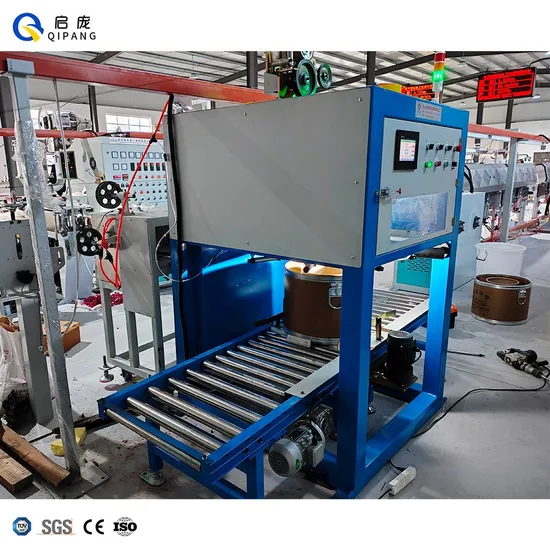

Product drawing
The Plum Blossom Barrel Take-Up Machine is an exceptional solution tailored for square and round carton packaging of flexible wires, including those used in vehicle and electronic applications. This versatile equipment can function independently with an inverted spool or be seamlessly integrated with an extrusion line, ensuring outstanding production efficiency. Equipped with a unique vibration mechanism, it meticulously arranges wires in a tidy and orderly manner, preventing any tangling or disorder.

Model	Wire diameter	bucket size	Max weight	Color
ML500	φ2-6mm	500mm	75-100kg	grey
Speed	Motor	Forming style	PLC	Automatic
300m/min	4KW	Quincunx	Taida	yes

Detailed Photos
This state-of-the-art equipment from Shanghai Qi Pang Industrial Co., Ltd., the Wire Bobbin Machine with Speed Control for 2-6mm Wire Range, boasts a high degree of automation that sets a new standard in efficiency. The user-friendly operation interface ensures convenient and swift handling, allowing for seamless control and adaptability. Featuring an automatic barrel change function, it minimizes downtime and enhances productivity. Additionally, it is equipped with an external spark machine, and the innovative concave and convex meter intelligently identifies and excludes waste lines, optimizing performance and reducing material waste.
Product Parameters
I. Main accessories brand: Experience the excellence of our product, with all electrical appliances and bearings sourced from renowned, prestigious brands.
1. Motor: Equipped with a high-performance Constant Speed AC Motor, delivering unwavering reliability and precision.
2. Controller: Featuring the sophisticated Japan Yaskawa 415V inverter for impeccable control and efficiency.
3. Programmable design controller: Employs the cutting-edge Delta controller for seamless operations.
4. Electrical appliances: All electrical components are from trusted brands Chint and Shilin, ensuring durability and top-tier performance.
5. Bearing: Incorporates Harbin and NSK bearings, synonymous with quality and smooth operation.
II. Main specifications and performance:
1. Applicable outer diameter: Accommodates wire diameters ranging from Ф2mm to Ф6.0mm with ease.
2. Height of packaging and conveying platform: Stands at an optimized height of 350mm for efficient processing.
3. Outer dia: Dimensions of 500mm diameter and a height range of 400-500mm, supporting weights between 75-100kg.
III. The plum blossom take-up machine composition specifications:
1. Adaptable wire diameter: Designed to handle soft wires with a maximum diameter of Ф6 mm.
2. Adapt line speed: Capable of adapting to a maximum line speed of 300m/min, optimizing productivity.
3. Power: Powered by a robust 4KW AC motor running on a three-phase 380V voltage, ensuring powerful and reliable performance.
4. Molding pattern: Crafts an elegant, overlapping plum blossom pattern for aesthetically pleasing results.
5. Vibration device: Features a 1/2hp gear motor that controls the vibration platform, enhancing the cable barrel's density and minimizing transportation loss.
6. Adapt to falling barrel: Compatible with a range of barrel sizes, including an outer barrel inner diameter of 575mm, an inner barrel outer diameter of 300mm, and a height of 585mm, with options for non-standard sizes.
7. Meter meter forecast function: Offers automatic barrel change, storage line, and manual waste line elimination control, streamlining operations.
8. Threading method: Engineered for rapid stringing, ensuring swift and efficient setup.
9. This machine is ideal for round wire plum blossom type into barrels. It simplifies post-sequence processes like cutting and peeling without tangling, supporting cutting speeds up to 10m/s.
10. Weight: The machine has a manageable weight of 200kg, balancing strength and portability. plum blossom take-up machine.
11. Operation direction: Fully customizable to meet specific customer needs, ensuring user-friendly operation.
12. Machine color: Finished in a sophisticated off-white, adding a touch of elegance to any environment.
Product Application

Plum Blossom Take-Up Machine: Experience the elegance and efficiency of our Plum Blossom Take-Up Machine, a quintessential component of your wire management system, designed to deliver top-tier performance with every use. Auxiliary Parts: Enhance your operational capabilities with our carefully selected auxiliary parts, essential for optimizing the performance of your wire processing systems.
1. Essential Components: Elevate your machinery's functionality with these indispensable components designed to ensure smooth operation and longevity. Match auxiliary inlet guide frame, steering mechanism: Precisely calibrated for perfect compatibility, our auxiliary inlet guide frame and steering mechanism work in harmony to provide unparalleled directionality and guidance for your wire processing needs.
2. Device Picture Of: Visualize the sophistication and engineering prowess of our machines through detailed pictorial representations, showcasing the advanced design and innovative features. Plum Blossom Take-Up Machine: Marvel at the intricate craftsmanship and robust construction of the Plum Blossom Take-Up Machine, expertly designed to seamlessly integrate into your existing systems, enhancing efficiency and precision.
Company Profile

Shanghai Qi Pang Industrial Co., Ltd. is a beacon of expertise with over two decades of unparalleled production experience. Our esteemed company has carved a niche in the world of cable testing and cable winding machinery since its inception. Proudly housing both a cutting-edge production workshop and an assembly workshop, we welcome our valued clients to partake in a virtual tour or visit us in person to witness our state-of-the-art facilities. Our dedicated and seasoned team of sales and technical experts are at your service, ensuring exceptional pre-and post-sale support. Rest assured, we are just a click away with our 24-hour online communication, always ready to respond to your queries with promptness and precision.
Experience excellence with our premium Wire Coiling Machine, Carton Winding Machine, and the exceptional Wire Bobbin Machine. Engineered for precision and reliability, these machines redefine efficiency and quality in wire management solutions.

---
