Versatile 20mm Bench Drilling Machine

Product Description

Product Description

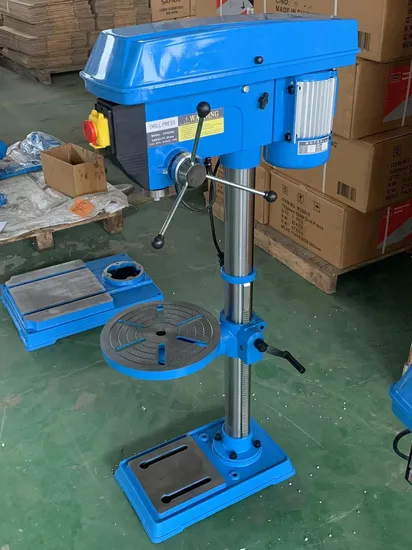

20mm Floor Drill Press/Drill Machine With 750w power HY5220A
Introducing our economical manual 20mm drill press machine, the HY5220A. This brand-new hobby drilling machine is perfect for various tasks. Made in China by Shanghai Hystrong Industrial Co., Ltd., it boasts quality comparable to Korean products. Key features include:
Drilling, tapping, boring, reaming capabilities
Belt drive for reduced noise
Adjustable worktable for vertical movement
Super high column for stability
Heavy-duty tapered roller bearing spindle
Positive spindle lock for safety
Adjustable gibs on the table for precision
Technical Data

Model	HY5220A
Drilling Capacity	20 mm
Swing	360 mm
Spindle Taper	MT2
Spindle Travel	85 mm
Spindle Speed Step	16 Steps
Spindle Speed	180 - 2,770 / 220 - 3,320 rpm
Maximumn Distance from Spindle Axis to Surface of Column	180 mm
Maximumn Distance from Spindle End to Surface of Worktable	620 mm
Maximumn Distance from Spindle End to Surface of Base	810 mm
Column Diameter	72 mm
Height	1,200 mm
Worktable Size	290 x 290 mm
Base Size	460 x 270 mm
Motor Power	450 / 550 / 750 w
Net / Gross Wieght	58 / 60 kg
Packing Size	1,000 x 500 x 300 mm

Accessories
Packaging & Shipping

Package	1 set/carton
Minimum Order Quantity (MOQ)	1 set
Full Container Loading Quantity (FCL)	180 sets/20'GP (unitary; customerized packing available)
Delivery Time	25 calendar days after receiving of advance / full payment

Company Information
Certifications
FAQ
Product Description
Welcome to Shanghai Hystrong Industrial Co., Ltd.
Here are some key details about our products:
Payment Terms: Our payment term is 30% T/T in advance, 70% T/T before shipment. It is negotiable.
Delivery Time: Usually, one machine takes 20-40 days. If we have in stock, we can arrange shipment as soon as we receive the payment.
Factory Location: Our factory is located in Yancheng, Jiangsu Province. We welcome you to visit and learn how to use the machine.
CE Certification: Yes, we have CE certification, ensuring machine quality.
OEM Orders: We accept OEM orders with your logo printed on the machine and package designed according to your specifications.
For more information, please contact us at Shanghai Hystrong Industrial Co., Ltd.
