1500W Pipe Tube Fiber Laser Cutting Machine for Round Mild Steel Automatic Loading and Unloading system 6m

US$17,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
6020
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Fiber
Laser Technology
Laser Head
Laser Cutting Machines Laser Power
1000W,1500W,2kw,3kw
Working Table
Sawtooth Platform
Model
1530 Fiber Laser Cutting Machine
Laser Wave Length
1064nm
Maximum Idle Running Speed
1200mm/S
Position Accuracy
0.05mm/M
Position Speed
20m/Min
Minimum Line Width
0.02mm
Cutting Thickness
<6mm
Position Type
Red DOT
Power Consumption
<12kw
Working Voltage
380V/50Hz
Auxiliary Gas
Oxygen,Nitrogen,Air
Working Life of Fiber Module
More Than 100000 Hours
Fiber Laser Cutting Head
Lasermech Made in USA
Transport Package
Wooden Box
Specification
1500mm*3000mm
Trademark
Dxtech
Origin
Shandong
HS Code
8461500090
Production Capacity
300 Per Month

Packaging & Delivery

Package Size
2500.00cm * 1500.00cm * 1300.00cm
Package Gross Weight
3000.000kg

Product Description

Product Description

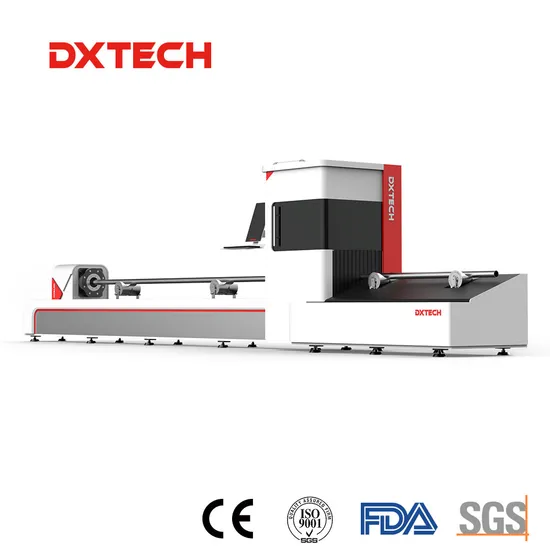

DXTECH three-chuck professional laser tube cutting machine is specially designed for cutting pipes in large quantities. It can quickly cut round, square, oval, rectangular, and other special-shaped pipes to meet different pipe-cutting requirements. The concentrated operation, flexible processing, automatic feeding, and pneumatic chuck feeding are convenient and fast, without manual operation.

Features
1. Fully automatic without manual work
This model is a fully automatic feeding pipe laser cutting machine. The loading and unloading mechanism is added to the ordinary pipe laser cutting machine, which can realize the automatic cutting of batches of pipes without human intervention.
2. High-efficiency "0" tailings
The humanized design of the whole machine makes the best use of raw materials while improving cutting efficiency reducing production costs, and achieving "0" tailings.
3. Materials are widely used
It is suitable for cutting round pipes, square pipes, rectangular pipes, waste pipes, angle steel, channel steel, I-beam, and other special-shaped metal pipes. Processing method: pipe cutting
Product Parameters
Model DXTECH-TM6220/TLA9220 DXTECH-TM6240/TMA9240 DXTECH-TM6360/TM9360
Max. tube length 6.5m/9.2m 6.5m/9.2m 6.5m/9.2m
Laser Output Power 1000W-4000W 1000W-4000W 1000W-4000W
Tube shape Round/square/rectangular Round/square/rectangular Round/square/rectangular
Max. tube weight 100kg 16kg/m 200kg 30kg/m 500kg 83kg/m
Chuck Two pneumatic chucks Two pneumatic chucks Two pneumatic chucks
Max. chuck rotating speed 130r/min 130r/min 140r/min
Laser Multiple options Multiple options Multiple options
Clamping range Φ10-Φ160mm Φ20-Φ220mm Φ20-Φ350mm

Cutting materials and thickness
Carbon steel 0.4-6mm 0.4-10mm 0.4-12mm 0.4-14mm 0.4-16mm 0.4-20mm
Stainless steel 0.4-3mm 0.4-4mm 0.4-5mm 0.4-6mm 0.4-8mm 0.4-10mm
Aluminum 0.4-2mm 0.4-3mm 0.4-3mm 0.4-4mm 0.4-6mm 0.4-8mm
Brass 0.4-3mm 0.4-3mm 0.4-3mm 0.4-8mm
Laser power 500w 750w 1000w 1500w 2000w 3000w
