High-Performance 20L Blow Molding Machine for Jerry Cans

Product Description

EXTRUSION BLOW SERIES

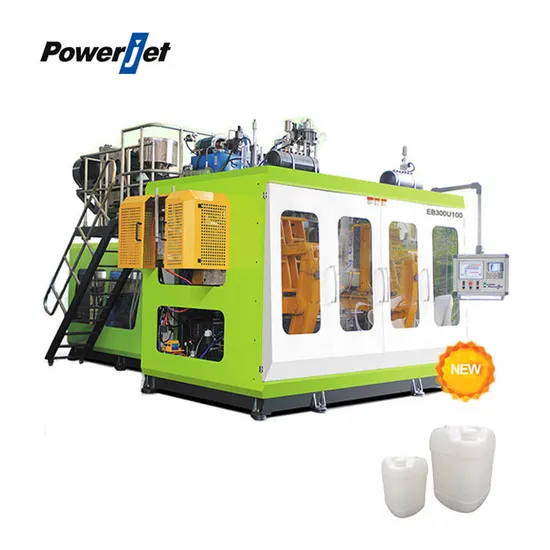

HIGH-SPEED DOUBLE STATION EXTRUSION BLOW MOLDING MACHINE EB120U/EB300U
Powerjet Double Station Extrusion Blow Molding Machine EB120U/EB300U is specialized for manufacturing bottles and containers which under 30L.

Max Bottle Capacity - 30(L)
Clamping Force - 200~240(KN)
Extrusion Weight(HDPE) - 150~180(kg/hr)
Applications - Wide Range Of Bottles for Daily necessities, toiletries, beverages, water tanks, bottles, etc.
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by a linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.
Product Description
Description:

Model		EB300U100
Max. Product	L	30
Clamping Force	KN	200
Max.Mold Size(W*H)	mm	850*700
Screw Diameter	mm	100
Screw L/D Ratio	L/D	24
Screw Rotary Speed	RPM	70
Extrusion Weight (HDPE)	kg	180
Extrusion Motor Power	KW	55
Pump Motor Power	KW	22
Heating Capacity	KW	35
Operation Pressure	Mpa	0.6~0.8
Air Consumption	m3/min	3
Cooling Water Consumption(25°c)	L/min	400
Machine Dimensions (LXWXH)	mm	5500*5100*4300
Machine Weight	kg	20000
