3D Printer Filament Making Machine 1.75 mm PLA ABS PETG 3D Printer Filament Production Line

Product Description

3D printer filament making machine New design winder 98% neat winding
Production Flow:
Raw plastic Material after Mixing-Extruder-Mould-- Hot Water Tank(Forming) -- Cooling Water Tank(Cooling)-- Laser Gauge(to measure diameter)-- Traction Machine-- Accumulator(Storage wire) -- Winding Machine(Automatically winding)

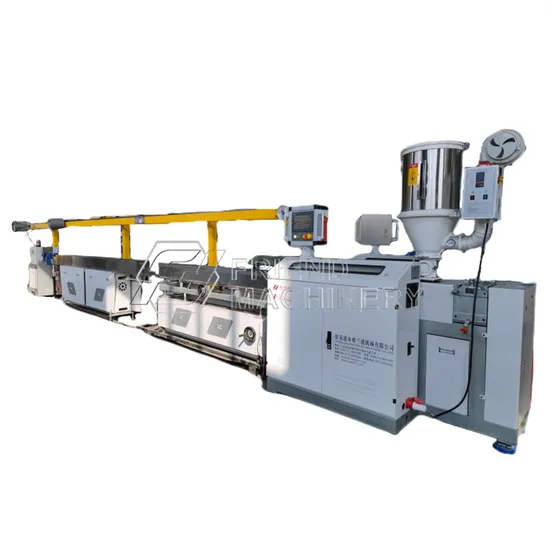

Production Line
1. High precision Siemens PLC control system.
2. The whole line drive is driven by servo motor and precision gearbox, which is stable extrusion, stable running and accurate speed control.
3. FLD production line has Automatic Feedback System
4. Devices are centralized controlled by computer screen for easy operation.

No.	Item	Qty
1.	Vacuum Feeder	1set
2.	Color Masterbatch feeding	1set
3.	SJ-45/28 single screw extruder	1set
4.	Mould and die(1.75, 3mm)	2sets
5.	Hot water tank	1set
6.	Cooling tank	1set
7.	Laser measuring Device	1set
8.	Synchronization Haul off machine	1set
9.	8 Meters Length Accumulator	1 set
10.	Double Position Automatic Winding machine	1set

Main Extruder
Screw diameter: 45mm
L/D: 28:1
Screw and barrel materials :38CrMoAlA Control system: Electric control box
Transducer: ABB
Voltage:380V, 50HZ,3P(customized)
Control System
System: PLC control system
Brand: SIEMENS
Advantage: easy operation
Mould
Heating power: 1.5 kw Diameter tolerance: ±0.02mm
Water Tank Method: Recycling water Material of the tank: Stainless steel Water pump: 1.5 kw Water Tank Length: 5000 mm Height of the centerline: 1000mm
Storage rack
Length: 5000mm
Material: Stainless steel
Power: 0.75 KW
Laser measuring machine
Control: PLC control
Distinguish ability: 0.001mm
Automatic Feedback System
Haul off machine

Roller quantity:4
Roller diameter:160mm
Draw method:Full automatic
Motor power: 0.75kw
Motor Type: Servo Motor
Winder machine
Control method: PLC control
Rotating speed: 1-1200 r/min
Disk changing method: Pneumatic
Motor: Servo motor
Final Product 98% neat filament
Zhangjiagang Friend machinery CO.,LTD is a national fixed-point enterprise specialized in plastic and cable machinery research and development, production and sales. The company has introduced advanced domestic and international technology, pay attention to technology reform, and constantly develop new product. The main products is: All kinds of extruder, pipe/sheet/profile/board production line, plastic recycling machine, crusher, mill, pulverizer etc.
Zhangjiagang Friend machinery CO.,LTD will unremitting efforts to achieve in technology and service in the future self improvement, and more to create and to provide customers the best products of real value, with first-class technology, flass-class products and first class service to our customer side by side to meet the beautiful future.

---
