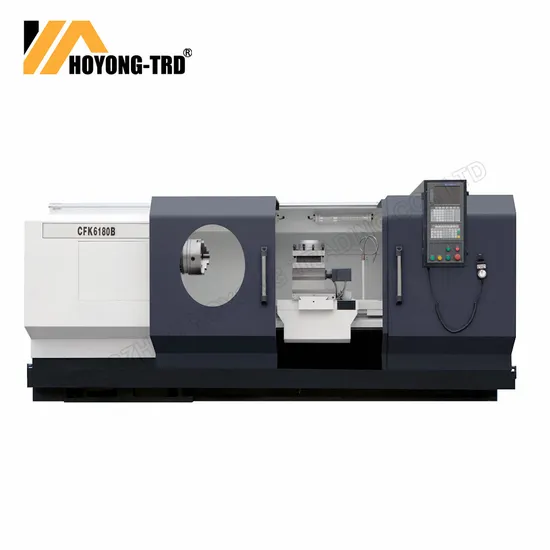

CNC Lathe with Flat Bed Factory Price Cfk6180b Cfk6180d Cfk6180q

US$23,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CFK6180B CFK6180D CFK6180Q
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, RoHS, ISO 9001
Condition
New
Max.Length of Workpiece
1000mm
Max.Turning Length
850mm
Max.Swing Over Bed
630mm
Main Spindle Bore
104mm
Transport Package
Plywood Case
Specification
6800kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month

Product Description

Item Unit CFK6180B
NC System GSK 980TDi Accept customized product
Max.length of workpiece mm 1500/2000/3000/5000/6000
Max.Turning length mm 1350/1850/2850/4850/5850
Max.swing over bed mm 800
Max.turning dia.over slide mm 480
Distance between spindle centerline to plane guide mm 400
Spindle center height from the ground mm 1130
Span of guide-Way mm 600
Main spindle bore 104
Spindle nose C11
Spindle taper hole 1:20/120
Center of spindle Morse NO.6
Ranges of spindle speeds r/min 8~32;20~80;100~440;310~1000/22~100;50~230;95~440;210~1000
No.of spindle speeds Forth gears,smooth adjustment
Gear shift Manual/Auto

Main servo mortor		 Model ZJY265A-11BM
Power KW 11
Rated speed r/min 1500
Rapid traverse speed of X-axis m/min 4
Rapid traverse speed of Z-axis m/min 8
Min.feeding set unit of X-axis mm 0.001
Min.feeding set unit of Z-axis mm 0.001

X-axis motor		 Rated speed r/min 1500
Torgue N.m 15
Power KW 2.3

Z-axis motor		 Rated speed r/min 1500
Torgue N.m 22
Power KW 3.5

Tailstock quill		 Diameter mm 100
Travel mm 250
Taper Morse NO.6

Electric tool-post		 Model HJLD170
No.of tool stations Vertical four-station
Dimension mm 250*250
Max.main cutting torque N.M 3200
Turret indexing time S 3.6
Overall dimension L*W*H mm 3700*1950*1750/4390*1950*1750/5390*1950*1750/6390*1950*1750/7390*1950*1750
Machine weight Kg 5500/5800/6100/6400/6700

Item Unit CFK6180D
NC System GSK 980TDi Accept customized product
Max.length of workpiece mm 1500/2000/3000/5000/6000
Max.Turning length mm 1350/1850/2850/4850/5850
Max.swing over bed mm 800
Max.turning dia.over slide mm 480
Distance between spindle centerline to plane guide mm 400
Spindle center height from the ground mm 1130
Span of guide-Way mm 600
Main spindle bore 140
Spindle taper hole 1:20/150
Center of spindle Morse NO.6
Ranges of spindle speeds r/min 8~32;20~80;100~440;310~1000
No.of spindle speeds Forth gears,smooth adjustment
Gear shift Manual

Main servo mortor		 Model ZJY265A-11BM
Power KW 11
Rated speed r/min 1500
Rapid traverse speed of X-axis m/min 4
Rapid traverse speed of Z-axis m/min 8
Min.feeding set unit of X-axis mm 0.001
Min.feeding set unit of Z-axis mm 0.001

X-axis motor		 Rated speed r/min 1500
Torgue N.m 15
Power KW 2.3

Z-axis motor		 Rated speed r/min 1500
Torgue N.m 22
Power KW 3.5

Tailstock quill		 Diameter mm 100
Travel mm 250
Taper Morse NO.6

Electric tool-post		 Model HJLD170
No.of tool stations Vertical four-station
Dimension mm 250*250
Max.main cutting torque N.M 3200
Turret indexing time S 3.6
Overall dimension L*W*H mm 3700*1950*1750/4390*1950*1750/5390*1950*1750/6390*1950*1750/7390*1950*1750
Machine weight Kg 5500/5800/6100/6400/6700

Item Unit CFK6180Q
NC System GSK 980TDi Accept customized product
Max.length of workpiece mm 1000/1500/2000/3000
Max.Turning length mm 850/1350/1850/2850
Max.swing over bed mm 800
Max.turning dia.over slide mm 520
Distance between spindle centerline to plane guide mm 400
Spindle center height from the ground mm 1230
Span of guide-Way mm 550
Main spindle bore 104
Spindle nose C11
Spindle taper hole 1:20/120
Center of spindle Morse NO.5
Ranges of spindle speeds r/min 6~24;24~90;85~325;325~1200/22~100;50~230;95~440;210~1000
No.of spindle speeds Forth gears,smooth adjustment
Gear shift Manual/Auto

Main servo mortor		 Model ZJY265A-11BM
Power KW 11
Rated speed r/min 1500
Rapid traverse speed of X-axis m/min 4
Rapid traverse speed of Z-axis m/min 8
Min.feeding set unit of X-axis mm 0.001
Min.feeding set unit of Z-axis mm 0.001

X-axis motor		 Rated speed r/min 1500
Torgue N.m 10
Power KW 1.5

Z-axis motor		 Rated speed r/min 1500
Torgue N.m 18
Power KW 2.8

Tailstock quill		 Diameter mm 100
Travel mm 250
Taper Morse NO.5

Electric tool-post		 Model HJLD170
No.of tool stations Vertical four-station
Dimension mm 250*250
Max.main cutting torque N.M 3200
Turret indexing time S 3.6
Overall dimension L*W*H mm 3150*2100*1950/3650*2100*1950/4150*2100*1950/5150*2100*1950
Machine weight Kg 3700/4300/4700/5300
