Pym 2-5 Layers LDPE/LLDPE Plastic Jumbo Roll Cling Film Stretch Film Making Machine Extrusion Line Plant

US$65,000.00-95,000.00 1 Set (MOQ)

Basic Info.

Model NO.

PB-L65/90/65X1850

Type

Plastic Extruder

Plastic Processed

LDPE /LLDPE

Product Type

Stretch Film Machine

Feeding Mode

Multiple Feed

Assembly Structure

Separate Type Extruder

Screw

Multi-Screw

Exhaust

Don′t Exhaust

Automation

Automatic

Computerized

Vlotage

Customized

Power (Kw)

180kw

Screw Diameter

90mmx1, 65mmx2

Screw L/D Ratio

30:1

Output (Kg/H)

180 - 280kgs

Weight

15t

Package

Plastic Film Wrapping

Inverter

Delta Taiwan

Transport Package

Standard Packing

Specification

L12500/W5500/H3800

Trademark

PYM

Origin

Zhejiang Province Wenzhou City

HS Code

84778000

Production Capacity

200sets/Year

Packaging & Delivery

Package Size

13500.00cm * 350.00cm * 350.00cm

Package Gross Weight

13500.000kg

Product Description

Detailed Photos

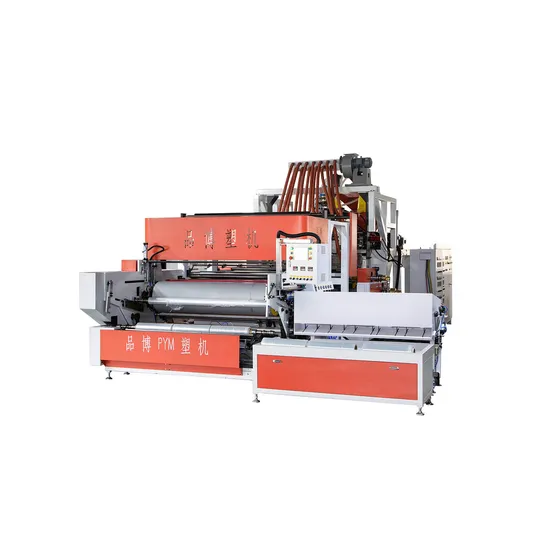

PYM 2-5 Layers LDPE/LLDPE Plastic Jumbo Roll Cling Film Stretch Film Making Machine Extrusion Line Plant
Product Parameters

Model No.	PYM-65/90/65*1850
Screw Diameter	65/90/65mm
Screw L/D	30:1
Screw Speed	50-150rpm
Layer Structure	ABC/ACBCA
Film material	PE
Film Width	1500mm/3*500mm
Film Thickness	0.01-0.05mm
Electric power supply	Customized, Standard is 380V/50HZ/3P
Total Power	130KW
Capacity	180-300Kg/h
Total weight	13.5T
Dimension	13.5M3.5M3.5M

Product Advantages Easy operating, long life, energy saving Stable and reasonable extrusion High quality T-die for excellent film evenness and stability Enhanced cooling system
(adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller) Advanced oscillation (swing) system Highest winding speed (up to 200m/min) among similar stretch film machines High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min Optional full automatic thickness gauge Excellent stretch film rolls quality for both hand use rolls and stretch use roll
T-Die with vacuum system:
Edge film trimming guiding roller:
Automatic Rewinder to make max.width 1500mm or 3rolls x 500mm:
