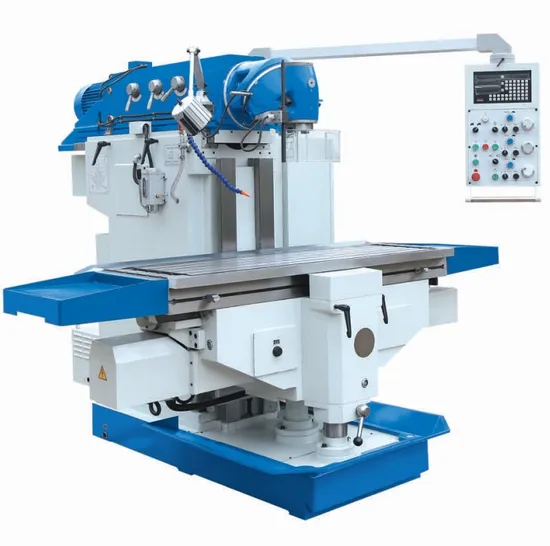

RAM Type Universal Milling Machine with 360 Degree Swivel Angle of Milling Head

Product Description

Product Description
Feature:
a,Table 3 axes with ball screws, high precision
b,Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
C,Mechanical change speeds in head stock, powerful milling
D,Table with an extra supporting column, big load, high accuracy
E,Table with an extra supporting column, big load, high accuracy
F,It can mill any angle surface through front half-sphere by swivelling milling head.
Specifications

Specifications	Unit	X5746	X5750	X5750A
Table size	mm	460*1235	500*1600	500*2000
T-slots(NO./width/pitch)	mm	5*18*80
Table travel (X/Y/Z)	mm	900*650*450	1200*700*500	1400*700*500
Swivel angle of milling head	-	360°
Spindle taper	-	ISO40	ISO50	ISO50
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/6-640	10-1000/10-1000/5-500
Table rapid speed	mm/min	2200/2200/1100
Distance between spindle nose and table surface	mm	50-500	50-550
Distance from spindle center line to column	mm	36-686	45-745
Main motor power	Kw	5.5	7.5	7.5
Feed motor	Kw	AC servo motor X/Y:18NM; Z: 27NM
Max load	Kg	800	1800
Overall size	mm	1835*2362*2090	2625*2460*2080	2625*2860*2080
weight	kg	4000	5000	5500

Standard accessories:Milling arbor,Draw bar,Oil gun,Tools,Manuals
Optional:

NO.	Item	Price (USD)	Remark
1	electric components	240.00
2	Aluminum alloy support arm	260.00
3	3-axis DRO	800.00
4	Spindle cover	50.00
5	Work table cover	240.00
6	LED work lamp	60.00
