1gallon Plastic Bottle Making Machine

US$9,800.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GM-series
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Computerized
Bottle Size
5L
Cavity
1
Transport Package
Wooden Case
Specification
1cavity
Trademark
GM
Origin
China
HS Code
8422301090
Production Capacity
200sets/Year

Product Description

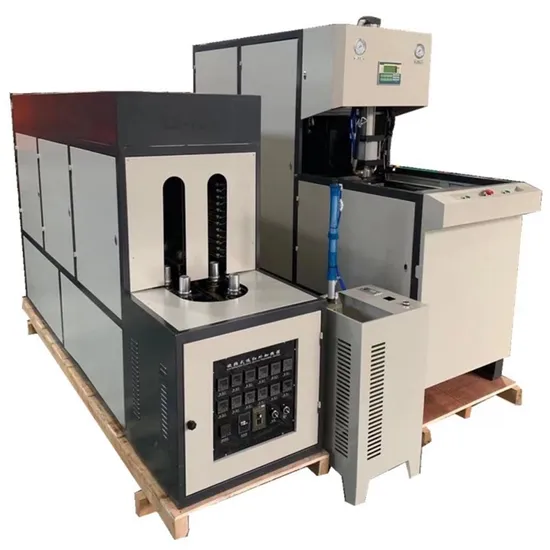

5L semi automatic PET bottle blow machines
Item model GMS-5L
Products request Max size 5L
Bottle mouth Φ12mm ~ Φ55mm
Max height <500mm
max height for preform <215mm
Molding stroke 318 mm
Die stroke 44mm
space of bottles 76.2mm
mold stand thickness 190mm
Capacity bph 350-600
Mould cavity 1
Heating Heating ozone 6
Lamp layers 7
Preform sits 72
Electrical Voltage 220/380V
frequency 50/60Hz
Power 14kw/h
install power 25kw
HP air compressor pressure 26~30bar
HP air consumption 1.2m3/min
Weight Blower+heating 1250KG
Dimension blower(L×W×H) 1.65*1.0*1.65(M)
heating(L×W×H) 2.05*0.7*1.45(M)

Auxiliary equipment configuration and parameters
High pressure air compressor 1.2/30
Main parameters
Model CWM1.2/30-YQ
Power 11kw
Rotate speed 620r/min
Rated processing gas volume 1.2m³/min
Rated working pressure 3.0Mpa
Weight 600kg
Dimension 1200*600*1200(MM)

Air compressor working principle: Air compressor, referred to as "air compressor" is a kind of power equipment, generally divided into a power type air compressor and a volumetric air compressor, a common centrifuge is a power type, screw type is a volume type. It mainly supplies compressed air. It is used in pneumatic and pneumatic control, gas flooding, and participation in chemical reaction needs. The compressed air produced by general air compressors needs to be treated because of the presence of pollutants such as particles, water, and oil stains in the atmosphere. The drying or purifying treatments are required to meet actual needs. (2) The role of the air compressor in the blowing machine: The blowing machine blows air, so the air compressor is the necessary equipment to provide the air supply. Therefore, the air compressor functions as an endless source of air supply equipment. At the same time, it can also simply filter the air but it is not so thorough.
Air filter
Main parameters
Model TCJL-2.0/30T
Rated processing gas volume 2.0m³/min
Rated working pressure 3.0Mpa
Temperature for air inlet <=80ºC
Filter accuracy 1um
Residual oil 1ppm
Weight 40kg
Dimension 300x300x750mm

How the filter works: The compressed air from the gas source contains excessive amounts of water vapor and oil mist, as well as solid impurities such as rust, gravel, and pipe sealants, which can damage the piston seal ring and block the components. The small vents shorten the service life of the components or make them ineffective. The function of the air filter is to separate the liquid water and liquid oil droplets in the compressed air, and to filter out dust and solid impurities in the air, but it cannot be removed. Gaseous water and oil
