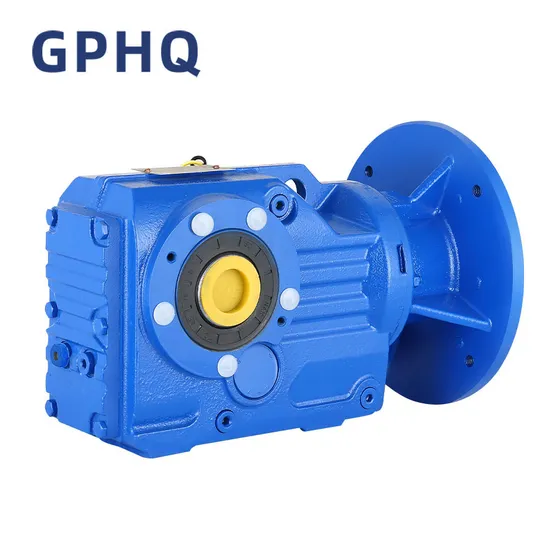

Gphq K Series Right Angle Helical-Bevel Gear Motor Geared Reducer Gearbox for Ball Mills

Product Description

K 90 degree bevel gear reducer motor K helical speed gearbox motor is designed based on modularization, which bring many difference kinds of combinations, mounting types, and structure designs. The detail classification of ratio can meet various of working condition. High Transmission efficiency, low energy consumption, superior performance. The hard tooth surface gear use the high quality alloy steel, the process of carburizing and quenching, grinding ,which give it following characters: Stable transmission, low noise and temperature, high loading, long working life. GPHQ K helical bevel gear box motor materials :

housing material:	HT2OO high-strength cast iron or HT250 High strength cast iron
Gear material:	20CrMnTi
Housing hardness	HBS90-240
Surface hardness of gear	HRC58°-62°
Gear core hardness	HRC33°-40°
Input/Output shaft material	40Cr
Input/Output shaft hardness	HBS241°-286°
Shaft at oil seal position hardness	HRC48 ° -55 °
Machining precision of gears material	Accurate grinding 6-5 grade
Efficiency	up to 98%
Noise(Max)	60-68dB
Temp.rise:	40°C
Vibration	≤20um
Motor	IP54, F class ,B5 FLANGE
color :	blue (if you need big quantity ,we can done as your wanted color )

Our reduction geared motor Advantage1,reasonable price with excellent quality
2,delivery in time
3,safe ,reliable ,economical and durable
4,stable transmission ,quiet operation
5,smooth running and low noise
6,nice appearance ,durable service life
7,high heat-radiating efficiency ,high carrying ability
8,each gearbox must be tested before packing
9.reply in high efficiency during one working day
10. professional to produce gearbox and electric motor .
If there is any question, please don't hesitate to contact with me (EVA), U can send us your inquiry. And you will get response in 1 working day.

MOTOR CATALOGUE :
CERTIFICATION :
PRODUCING PROCESS:
PACKAGE :
for one container, directly loading ,for less, all goods with pallet.
FAQ
1, Q:what\'s your MOQ for ac gearbox motor ?
A: 1pc is ok for each type electric gear box motor
2, Q: What about your warranty for your induction speed reducer motor ?
A: one year ,but except man-made destroyed
3, Q: which payment way you can accept ?
A: TT, western union .
4, Q: how about your payment way ?
A: 100%payment in advanced less $5000 ,30% payment in advanced payment , 70% payment before sending over $5000.
5, Q: how about your packing of speed reduction motor ?
A: plywood case ,if size is small ,we will pack with pallet for less one container
6, Q: What information should be given, if I buy electric helical geared motor from you ?
A: rated power, ratio or output speed,type ,voltage , mounting way , quantity , if more is better ,

---
