Plastic Waste Recycling Granulator with Enhanced Washing Line

Product Description

State-of-the-Art Plastic Recycling Washing Line: Meticulously crafted by the industry leader, Wenzhou Wandun Machinery Co., Ltd., our PE Plastic Recycling Machine with Enhanced Washing Line brings unmatched efficiency to the granulating process. Witness a new era of superior performance and steadfast reliability, expertly tailored to fulfill all your plastic recycling requirements.
Product Description
The plastic recycling washing system is the heart of Kitech machinery's innovative recycling series. This expertly crafted, modular system is engineered to handle a variety of rigid plastics and bottles with unparalleled efficiency. Capable of processing diverse plastics such as PE, LDPE, HDPE, PC, PS, and ABS, it ensures optimal recycling outcomes.
Kitech presents customizable module combinations meticulously designed to cater to your specific requirements and material conditions. With the versatility to handle an extensive range of raw materials, Kitech offers production lines with capacities spanning from 300 to 10,000 Kg, available in economy to high-level configurations to perfectly align with your production demands.


Introduction:

Type	WT500	WT100	WT2000	WT3000
Capacity(kg/h)	400-500	800-1000	1600-2000	2500-300
Dimension(L*W*H)	35*10*5	50*12*6	70*12*6	120*20*6
Steam consumption(kg/h)	0-150	0-200	0-300	0-600
Chemical consumption(kg/h)	0-3	0-5	0-10	0-20
Energy consumption(kwh)	175	198	306	550
instalation power(kwh)	210	330	498	810
*** (person /shift)	3-5	3-8	3-10	3-12

Main Technical Variables:
Belt conveyor:
Heavy-duty construction, equipped with a robust gear motor;
Side walls meticulously designed to prevent material spillage;
Crusher:
Expertly engineered, the blades are exceptionally sharp and powerful;
Enclosed cutting chamber to securely contain materials;
Externally adjustable knives for effortless use;
Shredder:
Specially designed hopper to effectively prevent material ejection;
Four-way rotating knives with uniquely crafted holders;
Extremely robust pedestal bearing housings for enhanced stability;
External mounting of bearing pedestal designs for improved durability;
Screw conveyor:
Constructed with premium wear-resistant stainless steel screws;
Triple sealing with advanced external bearing design;

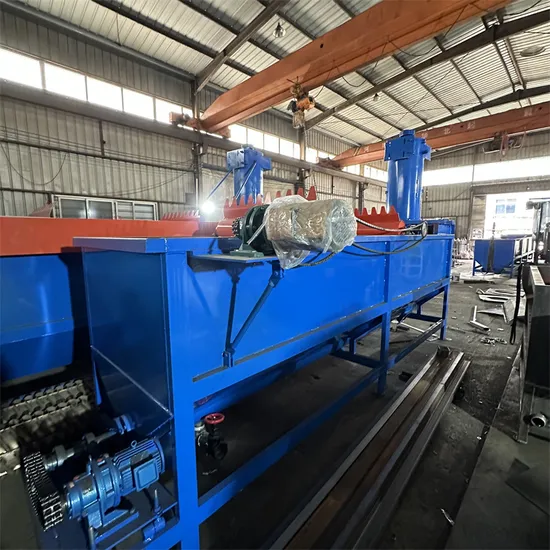

Washing tank:
Double station discharge valve strategically positioned at the bottom;
Variable speed control facilitated via inverter;
Heavy-duty washing unit, proficient in separating materials with different densities;
Friction washer:
Rotor and blades crafted from wear-resistant steel for extended longevity;
Rotor with precision dynamic balance treatment, achieving an accuracy of ±3-5g;
Active material washing to meticulously safeguard downstream units;
Centrifugal dryer:
Rotor with precision dynamic balance treatment, ensuring an accuracy of ±3-5g;
Mild circular screen ingeniously designed in a four-piece polygon configuration;
The washer/dryer housing is expertly constructed with welded stainless steel;
Squeezing dryer:
Heavy-duty shaft and blade for maximum efficiency;
Double hydraulic press units for superior performance;
Motorized screw squeezing for seamless operation;
Hot air pipe dryer:
Pipeline meticulously constructed with stainless steel welding;
All material-contacting parts are made from high-grade stainless steel;
Hot air drying system for exceptionally efficient drying;
Storage buffer:
Directly integrated with the pelletizing process for seamless workflow;
Large storage capacity ensuring uninterrupted operation;
Electrical cabinet
Equipped with international brand low voltage components for reliable performance;
Double circuit safety relay for enhanced operational protection;
Intelligent and modular PLC controlling system for smooth and seamless operation.
Q1. What are your terms of packing?
A: Our standard packaging involves placing the machine on a protective pallet and securely wrapping it with plastic film to ensure safe and secure transportation.
For exports to European countries, we ensure the wooden boxes are meticulously fumigated for uncompromised, compliant transport. Our attention to detail extends to packing with PE film, and we also offer bespoke packaging solutions tailored to meet the distinct needs of our esteemed clientele.
We are fully equipped and prepared to cater to special requests, ensuring that we meet your specific needs and preferences with precision.
Q2. What are your payment terms?
A: Our payment terms are straightforward: a 30% deposit via T/T is required, with the remaining 70% due before delivery. To maintain transparency, we provide detailed photos of the products and their packaging before the final payment is made.
Q3. What are your delivery terms?
A: We offer highly flexible delivery terms including EXW, FOB, CFR, and CIF to seamlessly accommodate your logistical needs.
Q4. What is your delivery timeframe?
A: Typically, our delivery timeframe ranges from 30 to 60 days following receipt of your advance payment. The precise duration may vary based on specific items and quantities in your order.
Our delivery times are flexible and may vary depending on the particular details and specifications of your order.
Q5. Do you test all your products before delivery?
A: Absolutely, we conduct a thorough and comprehensive 100% test on all our products to ensure they meet our stringent quality standards before delivery.
Q6: How do you ensure long-term and positive business relationships?
A: 1. We consistently provide high-quality products at competitive prices, ensuring maximum value for our customers.
2. We treat every customer with the utmost respect, fostering genuine and lasting business relationships and friendships, irrespective of their background or origin.

---
