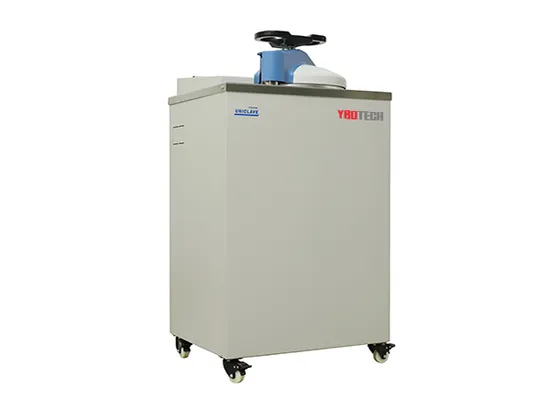

YBOTECH FD series Vertical Autoclave is suitable for sterilizing instruments, textile, glassware, medium, rubber, liquid, wastes and more, widely used in the biomedical research institution, laboratory and medical health center. Mian Feature Microcomputer control system Sterilizatioon process can be pre-set and completed automatically Solid mode, liquid mode Simple and easily understandable controm panel to show the sterilization temperature, sterilization time and drying time at the same time, pressing separate keys to set the temperature and time makes the operation easier System automatically monitors the discharging of the cold air to guarantee a pure steam sterilization environment and optimal sterilization effects LED screen clearly shows the dynamic sterilization process 13 effor detection procedures to monitor the normal operation of the instrument Safety Devices Self-induction inerlocking devices to avoid risk of misuse Dual overpressure protection system: upon detection of any abnormal pressure, system will relieve pressures or disconnect power supplies Over temperature protection system: power supply will be disconnected for protection upon detection of over temperature Dry scorch protection system: power supply will be disconnected for pretection upon detection of overlow water level Cover checking system: system can automatically check the locking of the cover, if the cover is not tightly locked, theautoclave can't be started Electric leakage, over current and short circuit protection: system will disconnect the power supply to avoid an electricity shock or other accidents Unique anti-scald cover and bench: nick look andavoid causing corrossions and scald. Technical Specification of FD Series Vertical Autoclave
| Model | FD36A FD36R
| FD50A FD50R
| FD80A FD80R
| FD100A FD100R
|
| Capacity(L) | 36 | 50 | 80 | 100 |
| Outer dimension(mm) | 460x542x960 | 460x542x1070 | 620x680x1042 | 620x680x1222 |
| Sterilization chamber size(mm) | 325×460 | 325×670 | 400×709 | 400×889 |
| Rated power supply | 220V 50Hz/60Hz |
| Rated power(W) | 2300 | 2600 | 4600 | 4600 |
| Working environment | 5ºC-40ºC, relative humidity 10%-85% |
| Chamber material | SUS 304 stainless steel |
| Sterilization temperature | 105-135ºC |
| Sterilization time | 1-300 min |
| Drying Time | 1-300 min( only available for Type R) |
| Range of pressure gauge | 0-0.4Mpa |
| Controller | Microcomputer control system |
| Mode | Solid mode, liquid mode, drying function of Type R |
| Safety Device | Self-induction interlocking device, over temperature protection system,dry scorch protection, over pressure protection, safety valve, over current and short circuit protection, cover checking system, electric leakage protection, scald protection, automatic failure-inspection system |
| Standard accessories | Stainless steel bakets,waste bottle, water plate, drainage hose |
| Optional parts | Printer, printing set, stainless steel pails |
