Fire Water Monitor Foam Monitor

Product Description

Hot Stainless Steel Water Cannon Fire Monitor Our Series Fire-fighting monitor,Automatic tracking and Positioning jet fire-fighting devices and fire-fighting robots fully reflect
our company's technological innovation ability. The products are exported to foreign countries and widely used in large space
fire-fighting systems, petrochemical fire-fighting,wharf fire-fighting,ship fire-fighting,vehicle-mounted fire-fighting guns,life-saving,
rescue equipment, precision equipment fire-fighting and other fields.They are few in China.Professional fire-fighting gun
manufacturer with R&D capability and export capability.
1.Advantages:
a. Concentrated jet flow and long range.
b. Large action area and multi-function.
c.Easy to operate and the barrel can either rotate or fasten.
d.Can be equipped on all kinds of fire trucks, fire boats, high platforms, fixed monitor towers and fire pipelines.
2.Working Principle:
The PSKD series worm drive foam/water dual fire monitor also consists of base, shell body, nozzle, barrel and horizontal swing
mechanism. What differs is that this model adjusts angles by worm drive group. Foam solution flows into shell from base and was
atomized when it pass the nozzle. The monitor inhales air to make the foam solution become foams and shoot out from barrel.
Operators can adjust its elevation and horizontal angle while using.
3.Technical Parameters:
We make available customized design for our clients special request.
Application: Boat,Fire Fighting Truck,Fire Robot,Anti-riot Water Cannon Vehicle

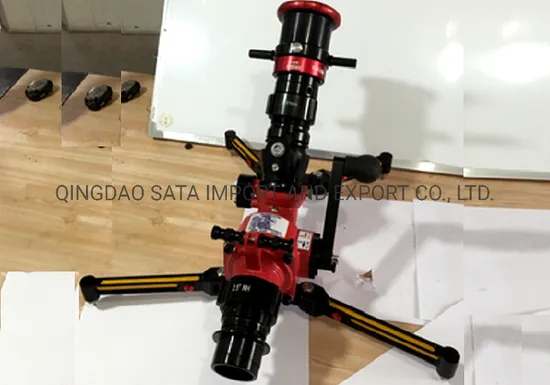

4.Picture of component:
5.Specification:
Type: PSY30-50SWING
Flow Range: 30-40-50L/S (500GPM-650GPM-800GPM adjustable),
Working Pressure(rated): 10 bar
Max Reach @ Max Flow: 65M
Swing type: 30°/40°/50° Swing adjustable horizontally, 20°-85° swing vertically.
Button available to switch swing type and manual type.
Max fog angle:120°
Material (body):Hard coated anodized Aluminum
Material (nozzle):Hard coated anodized Aluminum, Adjustable Nozzle
Inlet:20 degree is adjustable during installation and no need to hold the monitor.
Stream sharper is available and ensure expected range.
Spike: Anti-skidding tungsten steel spike to avoid skidding during operation. Spring damping mechanism inside the spike help
adjust well on uneven road and buffer recoil.
Inlet coupling is hose anti-knot ,360 degree rota-table, stainless steel ball valve built-in;
Foam attachment is available for foam fire fighting;
Weight incl. Nozzle:Approx 20kg

---
