Automatic Plate Bending Machine CNC Press Brake Factorty Price

Product Description

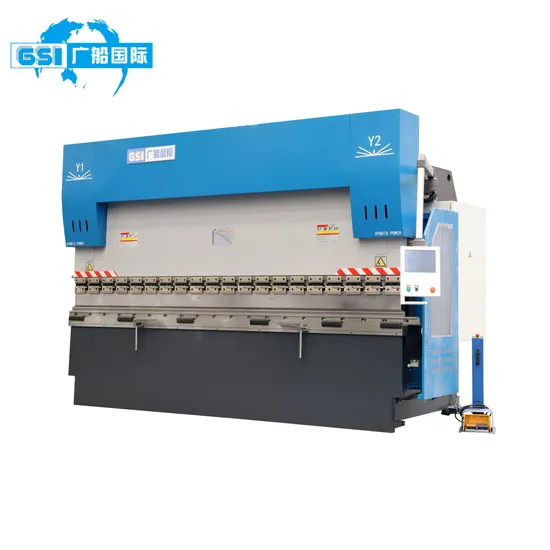

Product Description WH200/4000 Hybrid CNC Press Brake
Product Features
Critical Components
Detailed Pictures

Introduction for CNC System-- Delem DA-53T (Standard)
Optional CNC Sysytem
Main Technical Parameters of WH Series Hybrid CNC Bending Machine

No.	Model	Nominal Pressure (kN)	Table Length (mm)	Distance Between Columns (mm)	Throat Depth (mm)	Slide Stroke (mm)	Opening Height (mm)	Main Motor Power(kw)	Back Gauge Operating Range (mm)	Speed (mm/s)			Overall Dimension			Weight (kg)
										Approaching	Working	Return	L(mm)	W(mm)	H(mm)
1	WH40/1500	400	1500	1160	320	160	410	5.5	600	180	0~16	180	2300	1510	2535	4000
2	WH50/2000	500	2000	1500	320	160	410	5.5	600	180	0~16	180	2600	1560	2545	4500
3	WH63/2500	630	2500	2000	320	160	450	7.5	600	180	0~16	180	3100	1550	2500	5500
4	WH80/2500	800	2500	2000	400	200	470	7.5	600	180	0~15	180	3100	1650	2550	6000
5	WH100/2500	1000	2500	2000	400	250	475	11	600	180	0~15	180	3100	1650	2565	6500
6	WH100/3200	1000	3200	2700	400	250	475	11	600	180	0~15	180	3800	1710	2565	8300
7	WH100/4000	1000	4000	3500	400	250	475	11	600	180	0~15	180	4600	1710	2565	9200
8	WH125/2500	1250	2500	2000	400	250	475	15	600	160	0~14	160	3100	1700	2600	8000
9	WH125/3200	1250	3200	2700	400	250	475	15	600	160	0~14	160	3800	1745	2630	8700
10	WH125/4000	1250	4000	3500	400	250	475	15	600	160	0~14	160	4600	1745	2630	10300
11	WH160/3200	1600	3200	2700	400	250	475	15	600	160	0~13	160	3800	1755	675	9600
12	WH160/4000	1600	4000	3500	400	250	475	15	600	160	0~13	160	4600	1755	2675	11400
13	WH160/5000	1600	5000	4100	400	250	475	15	600	160	0~13	160	5600	1780	3075	15000
14	WH160/6000	1600	6000	5100	400	250	475	15	600	160	0~13	160	6600	1800	3075	18000
15	WH200/3200	2000	3200	2700	400	250	475	18.5	600	150	0~12	150	3800	1935	2895	11500
16	WH200/4000	2000	4000	3300	400	250	475	18.5	600	150	0~12	150	4600	1935	2895	13600
17	WH200/5000	2000	5000	4100	400	250	475	18.5	600	150	0~12	150	5600	1935	3100	16000
18	WH200/6000	2000	6000	5100	400	250	475	18.5	600	150	0~12	150	6600	1935	3200	21000
19	WH250/3200	2500	3200	2700	400	250	550	18.5	600	135	0~10	135	3800	1900	3100	14500
20	WH250/4000	2500	4000	3300	400	250	550	18.5	600	135	0~10	135	4600	1900	3200	16000
21	WH250/5000	2500	5000	4100	400	250	550	18.5	600	135	0~10	135	5600	1900	3350	17500
22	WH250/6000	2500	6000	5100	400	250	550	18.5	600	135	0~10	135	6600	1900	3500	21000
23	WH320/3200	3200	3200	2700	400	300	600	25	600	100	0~10	100	3800	2100	3200	17500
24	WH320/4000	3200	4000	3300	400	300	600	25	600	100	0~10	100	4600	2100	3300	20000
25	WH320/5000	3200	5000	4100	400	300	600	25	600	100	0~10	100	5600	2100	3600	24500
26	WH320/6000	3200	6000	5100	400	300	600	25	600	100	0~10	100	6600	2200	3600	27000
27	WH400/3200	4000	3200	2700	400	300	620	25	600	80	0~10	80	3800	2500	3700	20000
28	WH400/4000	4000	4000	3200	400	300	620	25	600	80	0~10	80	4600	2500	3850	28000

View more products, pls click here
https://gsi--tfm.en.made-in-china.com/product-list-1.html
Company Profile
Guangdong GSI Elevator Electromechanical Equipment Company Limited started to introduce international technology since 1983 and produce hydraulic plate shears, hydraulic press brake and grooving machines. In China, it is one of the earliest enterprises to produce hydraulic plate shears and hydraulic press brake. After more than 40 years of technology development, improvement and innovation, more than 100 patented technologies have been obtained, with the technical level of the products continuously improving. And the products have been exported to all over the world.
Workshop View
Our Equipment
Our Team
Qualifications and Honors
Technology Research and Development
Shipment and Delivery
FAQ 1. Q: Are you a factory or a trading company?
A: Guangdong GSI Elevator Electromechanical Equipment Ltd is committed to the R&D, production and sales of press brake, shearing machine, grooving machine and elevator.
2. Q: How to get a accurate quotation from you ?
A: Please provide us with details of material and the max length you need.You can also send us the workpiece drawing ,and we will choose the most suitable machine and quote for you.
3. Q: What's the payment terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment.
4. Q: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5. Q: Can you provide customized machine and tool?
A: Yes,we can design and manufacture according to your specific requirements.
6. Q: How do you guarantee your quality?
A: GSI have nearly 40 years of manufacturing experience. We are one of the earlist domestic enterprises producing hydraulic press brake and hydraulic shearing machine. We have more than 100 patented technologies and pass ISO9001:2015 quality management system. Our products have been exported to all over the word.
7. Q: Where is your factory located? How can I visit there?
A : Our factory is located in Zhongshan City ,Guandong Province, China. You could take train to Zhongshan railway station or Nanlang railway station, and then we could pick you up to our fatory from railway station. You are warmly welcomed to visit us.

---
