Fanuc System 5 Axis Boring Machinery with Milling Capacity (ZJR15-3017)

Product Description

Product application
Deep hole drilling machines are mainly used in the industries as following:
Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc.
-Hydraulic machinery industry: valve, distributor and pump,etc..
-Automotive industry: cylinder, fuel supply system and other parts
-Aerospace industry: the propeller, landing gear and other parts.
-Chemical and generator industry: heat exchange parts.

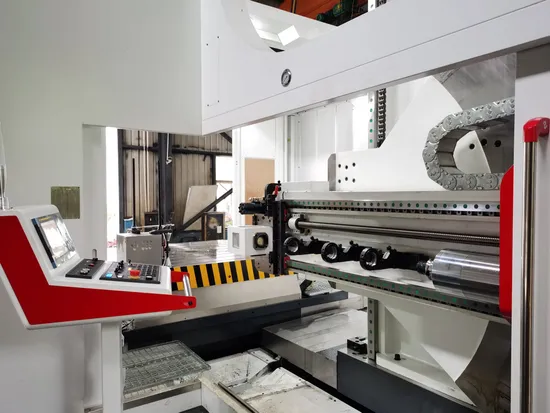

ZJR series CNC deep-hole drilling machine is automatic and multifunctional, majoring in deep-hole drilling and cutting, while milling function is also professional. With the modern industry advanced technology, the performance, accuracy, processing range, operating mode and working efficiency are in the international advanced level.
1.FANUC 0i -MD CNC system: stable performance, convenient operation programming, perfect and punctual after-sales service.
2.FANUC servo motor for six coordinate axis and main axis: good characteristic and perfect low speed performance.
3.With high-precision ball screw bar and rolling linear guide, the operating components make positioning accurately.
4.Remote control device is adopted in cooling system. Depends on the hole size, materials, chips and required precision, adjusting the flow rate and pressure can optimize the cooling result.
5.ZJR series CNC deep-hole drilling machine is mainly used for extremely difficult processes of deep-hole in mold industry. It's spoken highly of its high-efficiency, low-cost, humanized technological process.
Technical Specifications of
ZJR Series Six-Axis CNC Deep-hole Drilling Machine Tool

Items		ZJR15-3017
Processing Capacity	Diameter of the Hole for Gun Drill	3~35 mm
	Maximum Depth of the Hole for Gun Drill	1500 mm
Processing Range	(X)Processing Range (from Left to Right) of the Working Table	3000 mm
	(Y) Processing Range of Sliding Table	1700 mm
	(Z) Processing Range of Column	800 mm
	(A)The Rotary Angle of Ram	The Main Axis Turns upward 15 degrees, and down to 25 degrees
Main Axis	Taper Hole of Main Axis	BT50
	Maximum Speed of Main Axis	4500 rpm
Power	Main Axis Motor	11 kw/18.5 kw
	X X Axis Servo Motor	40 N.m
	Y Y Axis Servo Motor	40 N.m
	Z Z Axis Servo Motor	40 N.m
	W W Axis Servo Motor	30 N.m
	A A Axis Servo Motor	40 N.m
	B B Axis Servo Motor	53N.m
	Total Power	80kw
CNC Index Table	Burdening	30 ton
	(×)Measurement	2200×2400 mm
Cooling System	()Pressure Range of Cooling Liquid	2~15 MPa(Set 2~9 MPa)
	()Flux of Cooling Liquid	6~85 L/min
Measurement & Weight	(×)Floor Area of Machine Tool(Length*Width)	9500×8200 mm
	Maximum Height of Machine Tool	5300 mm
	Wight of Machine Tool	50ton
System	CNC System	FANUC 0i-MF
Milling Function	Milling Range	1900mm

Company Profile
Nanyang Zonjet CNC Technology Co., Ltd, located in Nanyang City, Henan Province, is one of the most important industrial projects in Nanyang. It is a garden style modern factory, covering an area of 5,000 square meters, including 3,000 square meters for productive land. There are 2 production bases in Nanyang, Henan and Dongguan, Guangdong. Integrating product development, manufacturing, customer service and all the resources, there is a core value system of full rage of service in Zonjet.
Zonjet CNC Technology Co., Ltd, focusing on area of CNC deep-hole drilling, has been developing in a high speed since established, and Zonjet has become a very effective brand name in the industry. Taking the need of customers as direction for product design and positioning, the function and specification of our products meets the demands of all users in different areas. Customizing products also creates the highest economic benefits for users. Main products: three-axis CNC deep-hole drilling machine tool, four-axis multifunctional deep-hole drilling machine tool, five-axis drilling and milling center, six-axis drilling and milling machine tool, tube plate machine tool, shaft deep-hole drilling machine tool and other deep-hole drilling machine tools for special industries.

---
