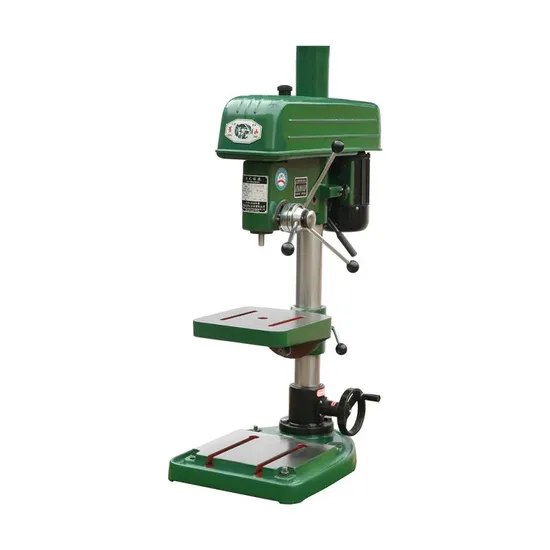

Double Scale Fixed Gear Shifting Combination Bench Drilling Machine with 16mm Drilling Capacity

Product Description

Double Scale Fixed Gear Shifting Combination Bench Drilling Machine with 16mm Drilling Capacity

Model	Z4116/16B
Max. Drilling capacity (mm)	16
Diameter of column (mm)	70
Max.spindle travel (mm)	100
Morse taper of spindle nose	MT.2
Spindle speeds (rpm)	480-800-1400-2440-4100
Size of worktable (mm)	265x265
Size of base worktable (mm)	250x300
Distance from spindle axis to column surface (mm)	193
Distance from spindle nose to worktable (mm)	0-255
Distance from spindle nose to base surface (mm)	250-500
Motor (kw)	0.55
GW/NW (kg)	115/100
Ship measurement (cm)	80x42.4x96.2

Detailed Photos
Our Advantages
Company Profile
FAQ
Q:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you.
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery, the quality can be fully guaranteed.
Q:Do you accept product customization?
A:Yes, we will try our best to meet your requirements.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q: Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
If you have any interests, please contact me in your free time.

---
