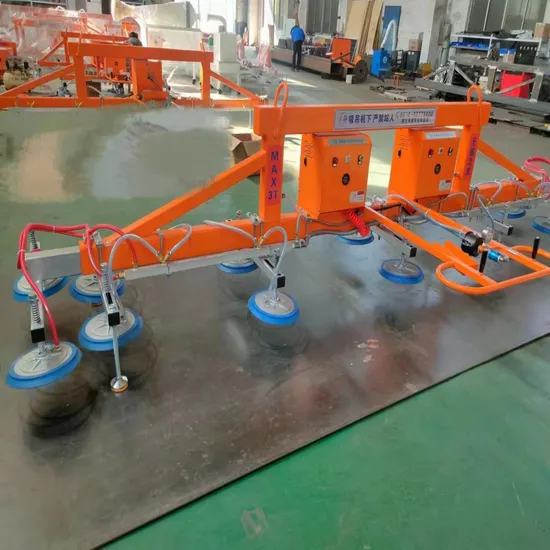

3000kg Multi Control System, Scalable. Vacuum Suction Cup Crane for Transporting Heavy-Duty 6-12m Plates of Medium and Thick Plates, with Built-in Power and No

Product Description

Suitable for steel plates of various characteristics with oil stains or rust of different sizes, the product adopts a manually designed handle: operating handle, simple and safe local galvanizing, and different lengths of main beams and crossbeams are configured according to different workpiece sizes.
The vacuum lifting equipment adopts modularization, operating handle, load and main beam, and vacuum suction cup can be customized according to the working conditions. The vacuum generating device provides the necessary suction for the handling operation and is transferred to the workpiece by the vacuum suction cup. To ensure safety, the aluminum load-bearing main beam is also used as a vacuum accumulator.
This suction hoist can be used on the on-site crane or can be additionally equipped with a simple column electric hoist. Configure main beams and crossbeams of different lengths according to the dimensions of different workpieces.
Product specifications

Model	KKP-200-1-E	KKP-400-1-E	KKP-500-6-E	KKP-800-8-E	KKP-1000-10-E	KKP-1500-8-E	KKP-2000-10-E	KKP-2500-12-E
Board Length	L(800-6000)mm*W(500-1500)mm
Suction Capacity	200kg	400kg	500kg	800kg	1000kg	1500kg	2000kg	2500kg
Number of Suction	1	1	6	8	10	8	10	12
Suction cup size	Φ230mm	Φ230mm	Φ230mm	Φ230mm	Φ230mm	Φ300mm	Φ300mm	Φ300mm
Control Mode	manual/Remote Control
voltage	DC12	DC12	DC12	DC12	DC12	DC12	DC12	DC12

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ
Q1.Are you a factory or trading company? We are a manufacturer specializing in the production of vacuum suction cups, vacuum suction cranes, column type cantilever cranes, robotic arms, palletizing robots, vacuum fixtures, vacuum suction cup end pickers, vacuum component system equipment, vacuum handling system integration equipment, etc
Q2.What size of board can the charging suction crane lift? Wuxi Lizhi Vacuum Suction Cup Lifting Appliance Co., Ltd. produces various types of suction cranes, including 0.5t-0.8t-1t-1.5t-2t-3t-5t-10t-20t.
Q3.Can we customize according to the customer's product?
Yes,we have many types and specifications. If there is no suitable one, we can customize according to your product.
Q4.What fields can vacuum suction cranes be used in?
We cover a wide range of products including home appliances, 3C electronics, building materials, food packaging, medical equipment, automotive parts, metallurgy, daily chemical products, rubber and plastic, sanitary ware, textiles, new energy, warehousing and logistics, and many other fields.
Q5.Does the equipment need to be assembled?
No, it's not necessary.The equipment has been debugged before leaving the factory, and you can lift any plate directly with the crane hook.
Q6.Is the device easy to operate and convenient?
The rechargeable suction crane produced by Wuxi Lizhi is a good product in the sheet metal industry, which greatly improves work efficiency and safety, and is very convenient to use.
Q7.How can I get the price? We usually quote within 24 hours after we get your inquiry.
If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you
quote.

Q8.Which is better, an unpowered suction crane or a rechargeable suction crane
The unpowered suction crane produced by Wuxi Lizhi is suitable for whole board handling and loading/unloading, while the rechargeable suction crane can not only complete the suction and lifting of whole boards, but also parts, making it more suitable for the sheet metal industry.
Q9.Does an unpowered suction crane require a vacuum pump?
Wuxi Lizhi vacuum suction crane does not require a vacuum pump, it relies on the internal circulation chamber to generate vacuum
Q10.What are the safety devices of the suction crane?
The suction crane is equipped with safety measures such as pressure detection, pressure alarm, and suction and discharge load control.

---
